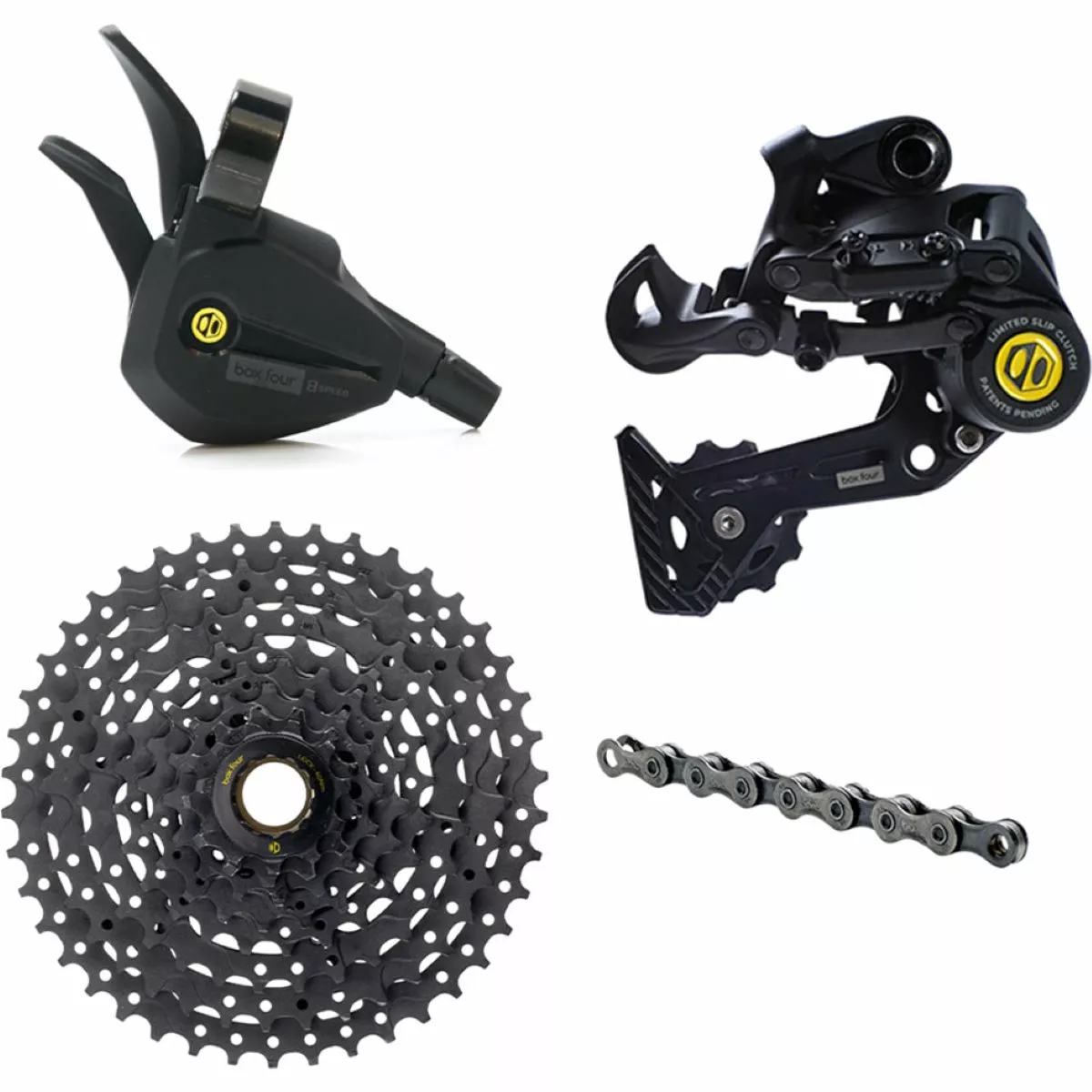

Box Four 8 Speed Drivetrain Groupset

The Box Four groupset is designed for riders who want less fuss. It features an 8 speed shifter and an 11-42T cassette, which offers a great range of gearing to meet the demands of your off-road adventures. Designed for smooth performance, its rear mech uses a Limited Slip clutch in a compact cage. A final highlight is its custom 8 speed chain that’s built for abuse. This makes it a great groupset for riders that want strong groupset without all the frills and at a wallet-friendly price.

Box Four 8 Speed Shifter

The Box Four shifter’s main features aren’t strikingly different from Box Three’s. The key difference is its 8-speed platform. We’ve chosen to modernize the 8-speed in much the same way we did the 9-speed for Prime 9. Just like the Prime 9, the Box Four shifters take advantage of the “less is more” theme and exploit durability, simplicity, and reliability.

Features:

Material: Glass Fiber / Nylon Composite, Steel

Extruded Clamp

2 Piece Pull Lever / Up to 3 Gears Per Shift

Resin Top Shell

Fast Action Release Lever

Not Intended for E-Bike Use

Weight: 128g

Box Four 8 Speed Wide Rear Derailleur Black

The Box Four Rear Derailleur is the base of Prime 9 Technology that offers an affordable clutch based 1 by 8-speed derailleur that is simple and light; this makes it a perfect candidate for every entry-level bike that traditionally has a 3 by drive-train that is neither durable nor user friendly.

Features:

Material: Aluminum, Glass Fiber / Nylon Composite, Steel

Limited Slip Clutch

Bearing Pulleys

Nylon Composite Knuckle

Direct Channel Cable Stay

Die-Cast Linkages

Stamped Inner and Outer Cage

Compatible with Standard Derailleur Hangers (Non Direct-Mount)

Weight: 328g

Box Four 8 Speed 11-42T Cassette

The Box Four cassette adapts our Prime 9 philosophy of durability, simplicity, and reliability at a great price point. All cogs are stamped from steel, given our durable black coating and then the larger cogs are pinned to each other with spacers for easy installation.

Features:

Material Cold Rolled Steel

Steel Stamped Cogs

No Spiders

Wide Ratio & Consistent Progression

ED Black Protection

Compatible with HG Freehub Bodies

Not Intended for E-Bike Use

Weight: 473g

Box Four 8 Speed 116 Link Chain Natural

The Box Four chain employs an 8-speed platform in a similar strategy to the Prime 9 but at a great price point. The chain is polished and then chemically treated to achieve corrosion resistance. We engineered the inner link spacing to be a little tighter than other 8-speed chains and is optimized for use with our Box Four Wide/Narrow Chainring.

Features:

Material: Hardened Alloy Steel

Durable Hardened Solid Pins

Wide/Narrow 8 speed Specific

Weight: 364



FAQ

Derailleur

Are Box Prime 9 derailleurs compatible with Shimano “direct mount” hangers? No, Shimano direct mount hangers are proprietary and are not compatible with Box derailleurs.

Is the Box Four Prime 9 Derailleur compatible with other 8 speed components? No, traditional 8 speed systems use a Cable Pull that is not compatible with Prime 9.

Are Box Prime 9 derailleurs compatible with drop bar (road) shifters? No, Box Prime 9 derailleurs are not currently compatible with drop bar shifters, but we do offer a clamp for our shifters to mount on some 31.8mm drop handle bars.

How should I clean my Box Four Prime 9 derailleur? We suggest removing the derailleur from the bike and using a soft bristle brush or rag with soapy water or a mild degreaser. We do not recommend pressure washing, strong solvents or de-greasers as they could degrade the surface coating.

Shifter

Does the Box Four Shifter come with a cable? Yes. All Box One Twin Lever Shifters come with a stainless steel shift cable.

How do I remove the cap from the cable port to install a new cable? To remove it, use a Phillips head screwdriver and turn it counter-clockwise a quarter turn You can then push the cap out by applying pressure to the cable from the other side. Please Note: The Cable Port is not a screw that un-threads from the cable port if you turn the cable port screw more than 90 degrees damage may occur.

Is the Box Four Shifter compatible with other 8 speed derailleurs? No, traditional 8 speed systems use a Cable Pull that is not compatible with Box Four components.

Cassette

Will the Box Four Prime 9 Cassette fit on a wheel with a Sram XD Driver? No this will only work with a HG splined Shimano 9-10-11 speed freehub body.

Is the Box Four Prime 9 Cassette compatible with other 8 speed drivetrains? No, The Box Four Prime 9 Cassette is optimized for use only with Box Four Prime 9 Components; running other component variations could result in poor performance.

How should I clean my Four Prime 9 Cassette? We suggest removing the cassette from the wheel and using a soft bristle brush with soapy water or a mild degreaser. We do not recommend pressure washing, strong solvents or degreasers as they could degrade the surface coating.
