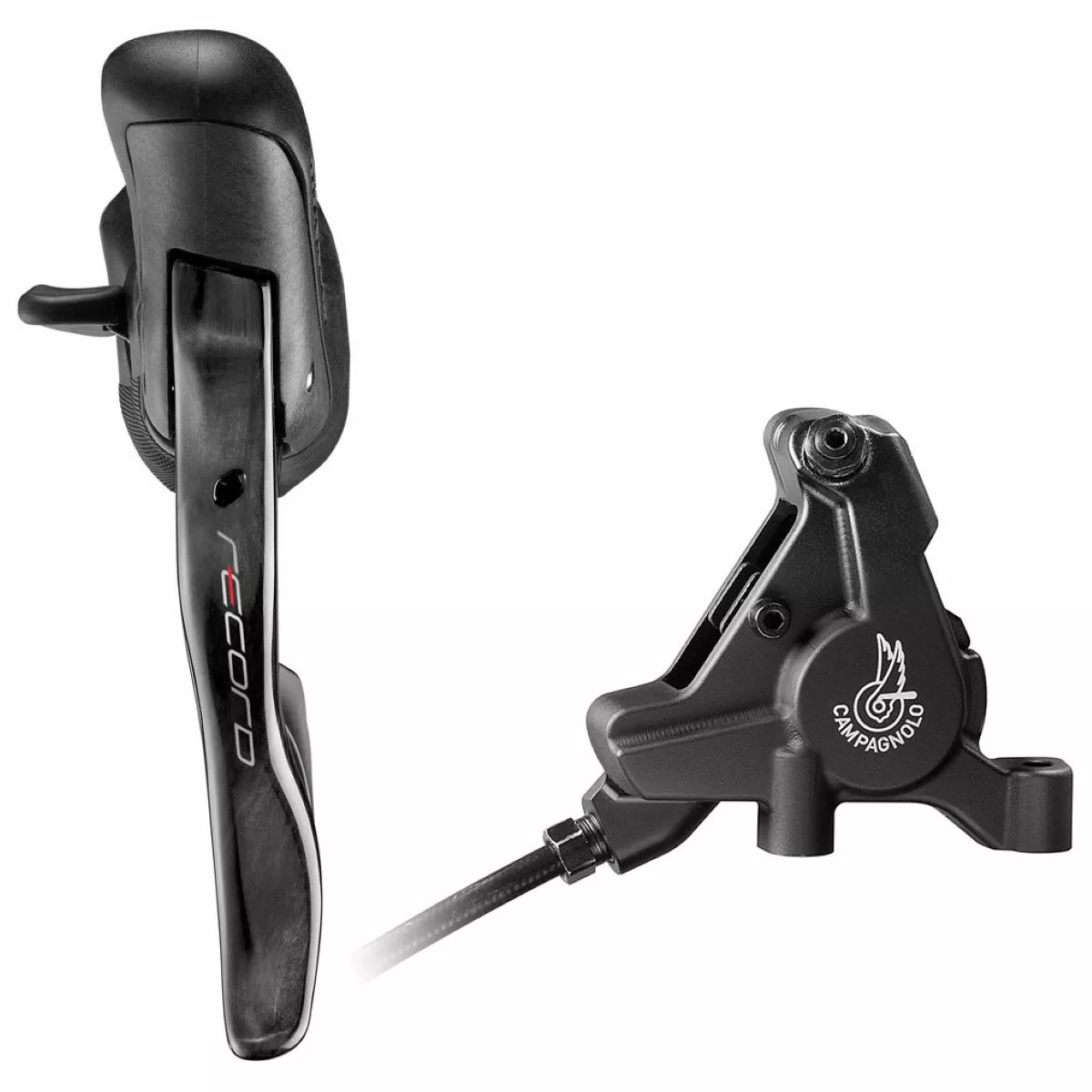

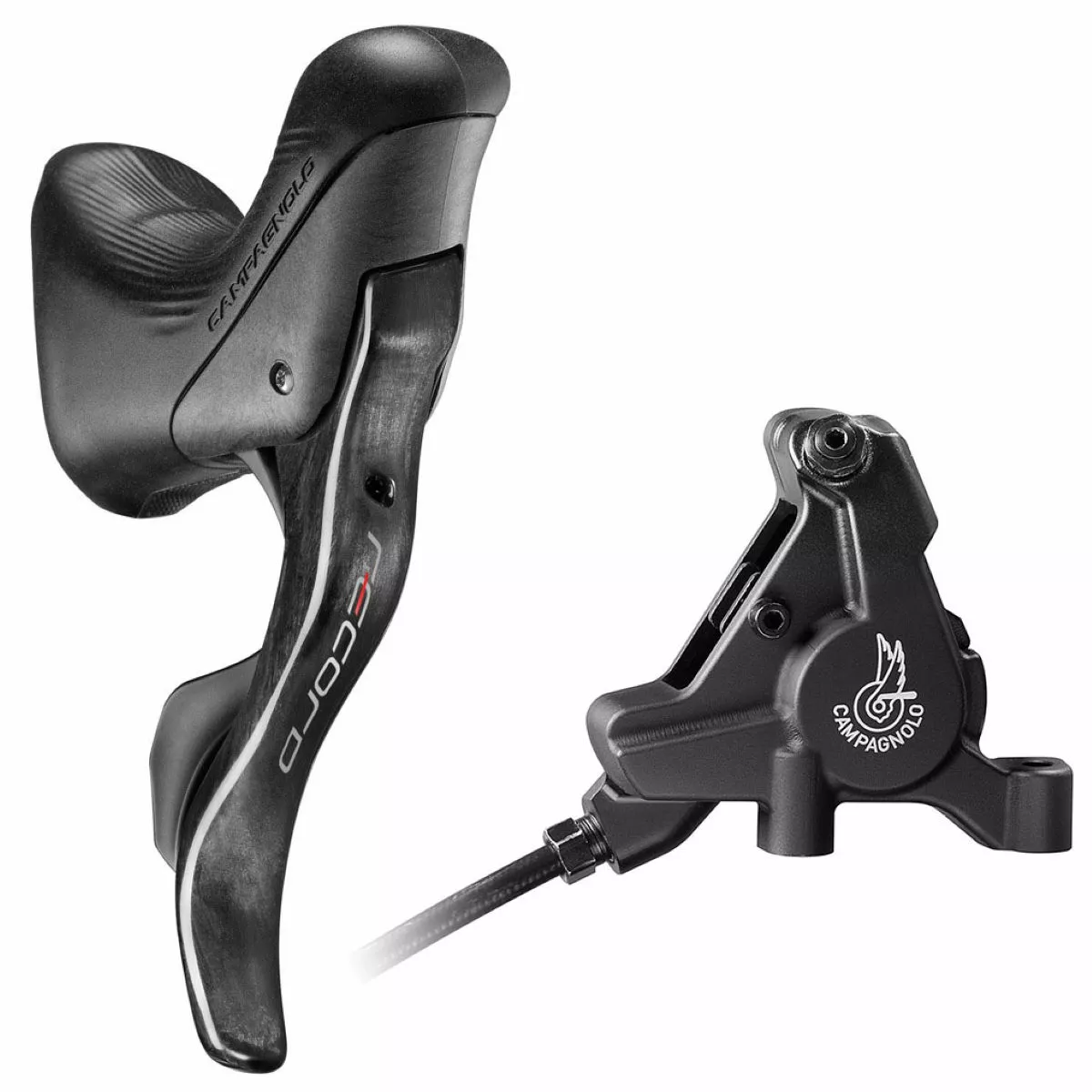

Campagnolo® Campagnolo Record 12 Speed Hydraulic Ergos And Caliper

Engineered for complete control in all road cycling situations, this kit pairs an Ergopower Record 12 Speed Disc Brake controller with a brake caliper for powerful braking performance, greater ergonomics and an easier-to-maintain set-up. Benefitting from many of Campagnolo’s finest technologies including Vari-Cushion, One lever-One action, AMS Adjustment and an Ultra-Shift System, this set also offers a wide range of features and personalisation, so riders can fine-tune their braking and shifting performance to match their riding style or the terrain conditions.

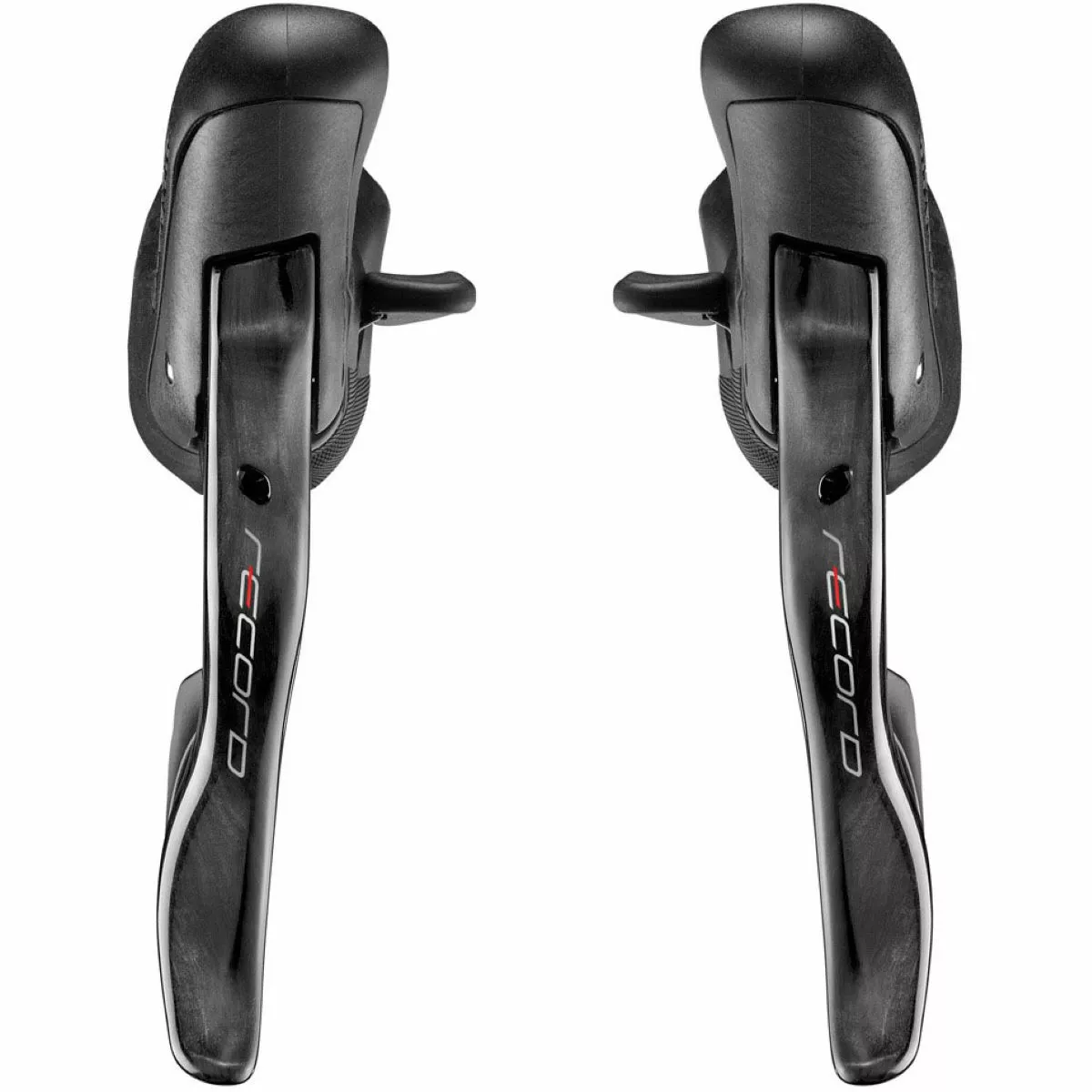

12 Speed Ergopower Record Disc Brake Controller

The mechanical controller for the Ergopower Record 2×12 Speed Disc Brake offers an ergonomic, comfortable and safe support and grip thanks to Vari-Cushion technology, essential for those who stay on the saddle for several hours. Campagnolo has also equipped this model with its renowned One Lever-One Action technology, which assigns each lever a single function to prevent shifting errors. Another highlight is its Ultra-Shift mechanism, which enables upshifting up to three sprockets at a time and downshifting a full five. This function allows you to maintain cadence even in case of sudden changes of incline or rhythm, with speed and ease.

Delivering more customisation, this lever adapts to different hand sizes with three levels of Reach Adjustment that enables riders to move the brake lever closer to the low grip. This makes it a great choice for any hand size, including smaller hands. In Addition, its AMS Adjustment allows braking modulation the moment of shift engagement through the use of specific levers. The carbon fibre brake levers feature a unidirectional disposition of the fibre to ensure they match seamlessly with the other components of the Record groupset (available separately).

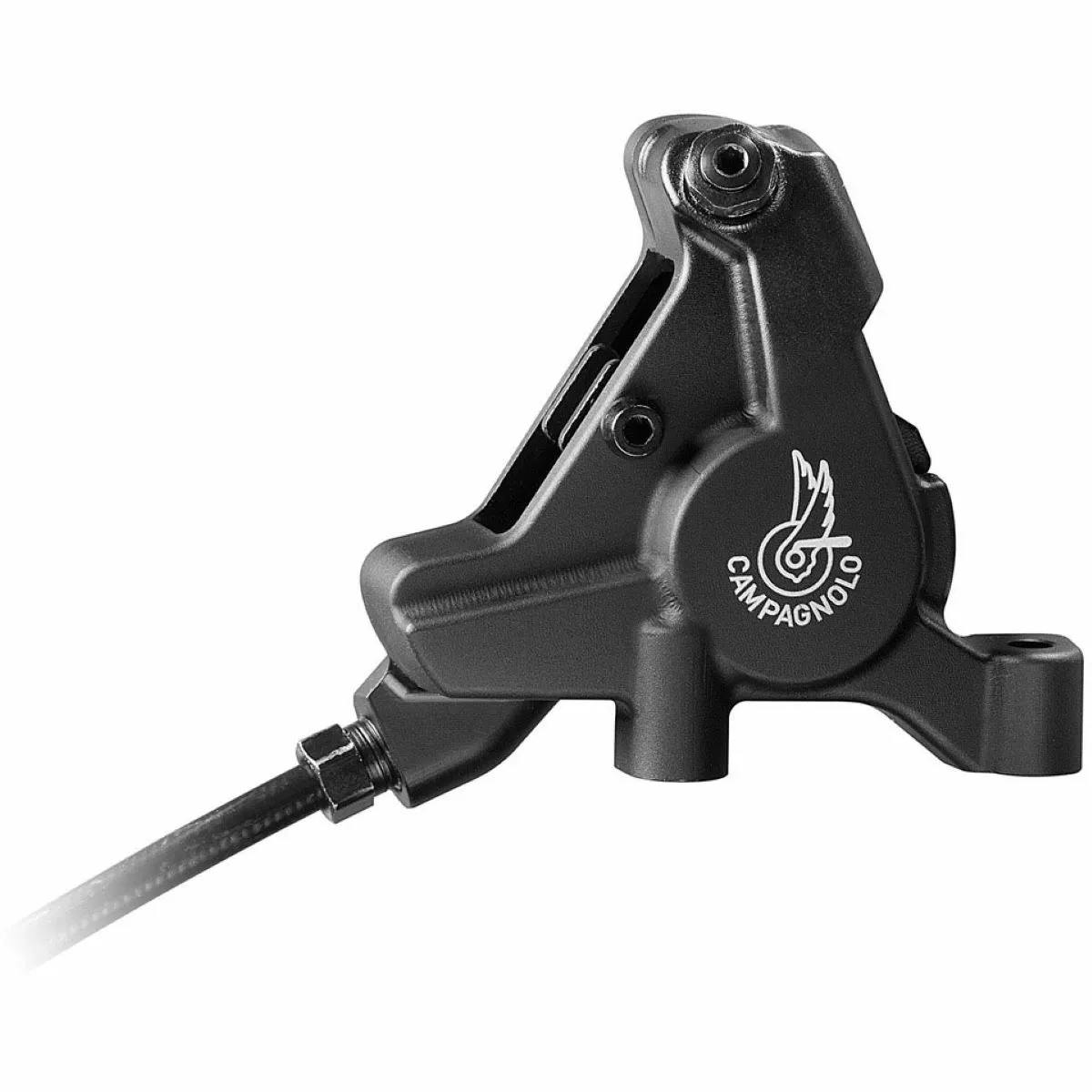

Campagnolo Caliper

The flat-mount Campagnolo brake caliper ensures powerful, modular braking in any situation owing to pistons measuring 22mm in diameter. The pad return is now optimised to ensure that there is no friction when the brake lever is released. A special metal plate positioned between the pad and the caliper piston cushions the vibrations during braking.

The Campagnolo brake caliper is designed to be mounted together with the disc chosen by the rider (available separately) and to always guarantee the highest level of performance. Careful attention was given to making maintenance and assembly operations easy: the pads have wear indicators and replacing them is facilitated by the absence of physical return springs. Additionally, work was done on the insertion of the disc in the caliper to make changing the wheel easier and faster.

Technologies:

Controller Technologies

Comfortable Body: The controls enable a solid, safe grip when pedalling out of the saddle or gripping high on the handlebar.

Rapid Shifting: Immediate shifting engagement enables activating the front derailleur with minimum effort and in any hand position on the handlebar.

Multiple Action: An unplanned ascent, a sudden jerk: it takes barely a moment to find the right ratio owing to the multiple action of the controls.

Ergonomic: The shape of the body and the possibility to adjust the reach enable all cyclists to use these controls, regardless of the size of their hands or fingers.

Customisable: 3 levels of reach adjustment.

Upshifting Lever Integration: More space under the control body when gripping the Ergopower control.

Disc Caliper: Flat mount disc only, to be compatible with the latest frame technology.

Maximum Smoothness Cables: Updated cable set maintains exceptional smoothness far beyond those of the competition, maximum performance longevity.

Superior Alignment: Braking lever pivot aligned with slant of ergo power, more efficient power transfer requiring less energy from rider’s hand.

Upgraded Brake Lever: The result of meticulous studies (double curve brake lever, updated form outward curve).

Vari-Cushion Hood: Different thicknesses allowing for greater grip, comfort and water dispersion.

Enlarged Shifting Paddles: For instant reaction access.

Ultra-Shift System: Up to 5 sprockets in downshifting, up to 3 in upshifting.



Caliper Technologies

Standard Flat Mount: Fully compatible with flat-mount frames.

22mm Pistons in Phenolic Resin: Braking force and thermal isolation.

Piston-Caliper Connector: The return action of the pistons is now optimised, rapidly returning the pads to their position and thus ensuring an overall clearance between pad and disc of 0.4-0.8 mm, with no risk of accidental contact.

Interchangeable Spare Parts: Pads, cylinder, screws, bolts (same for all calipers): Fully compatible and optimised spare parts, making maintenance practical.

Wear Indicator: It is very easy to see when the pads need to be replaced.

Rounded Brake Pads: These facilitate disc insertion and speed up wheel changing.

Anti-Vibration Plate: Optimal braking without vibrations.

Two Fixing Screws: Rapid installation and maintenance.



Manufacturer’s Part Numbers:

CPB450B Black Carbon 140mm Caliper LH Rear
CPB451A Black Carbon 160mm Caliper RH Front
