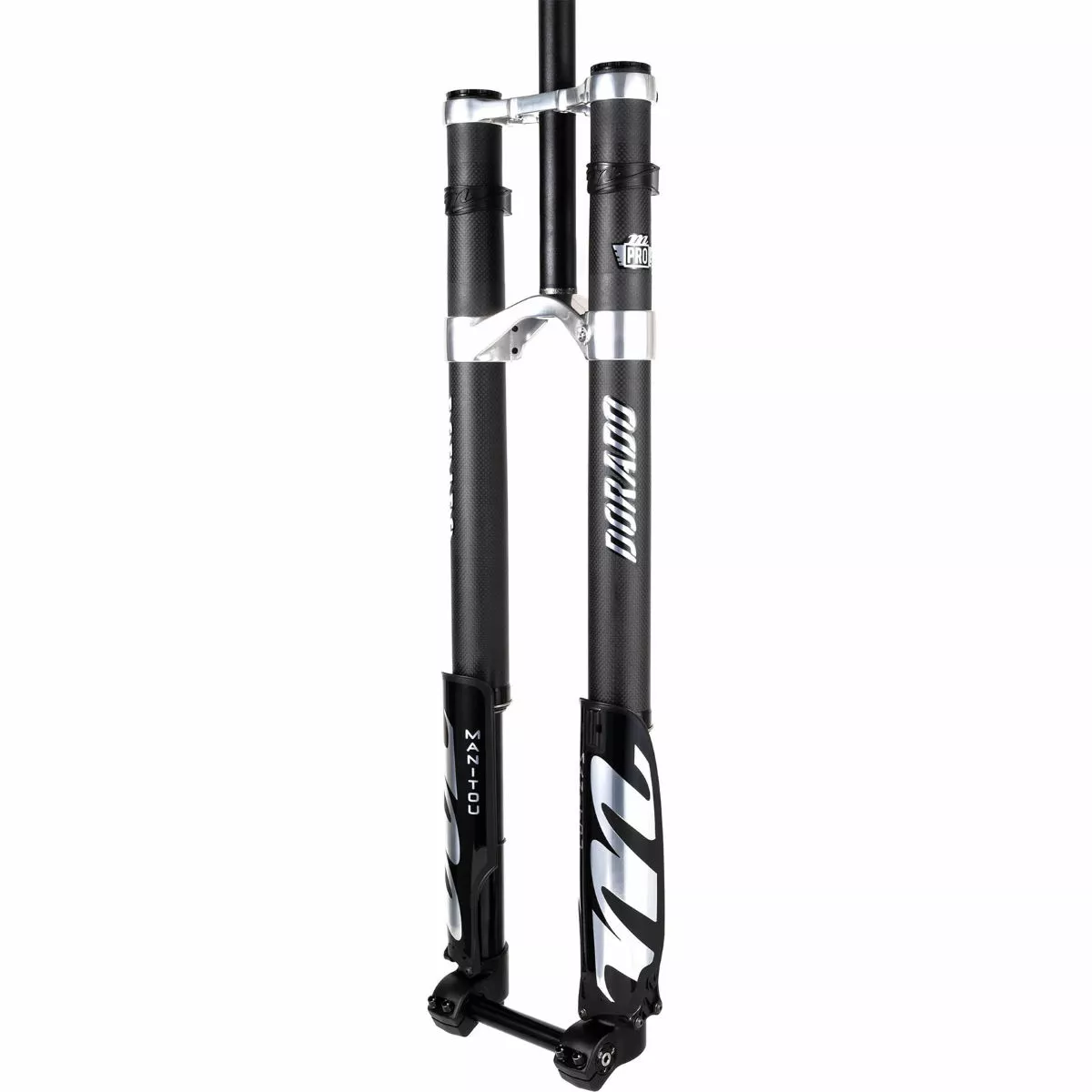

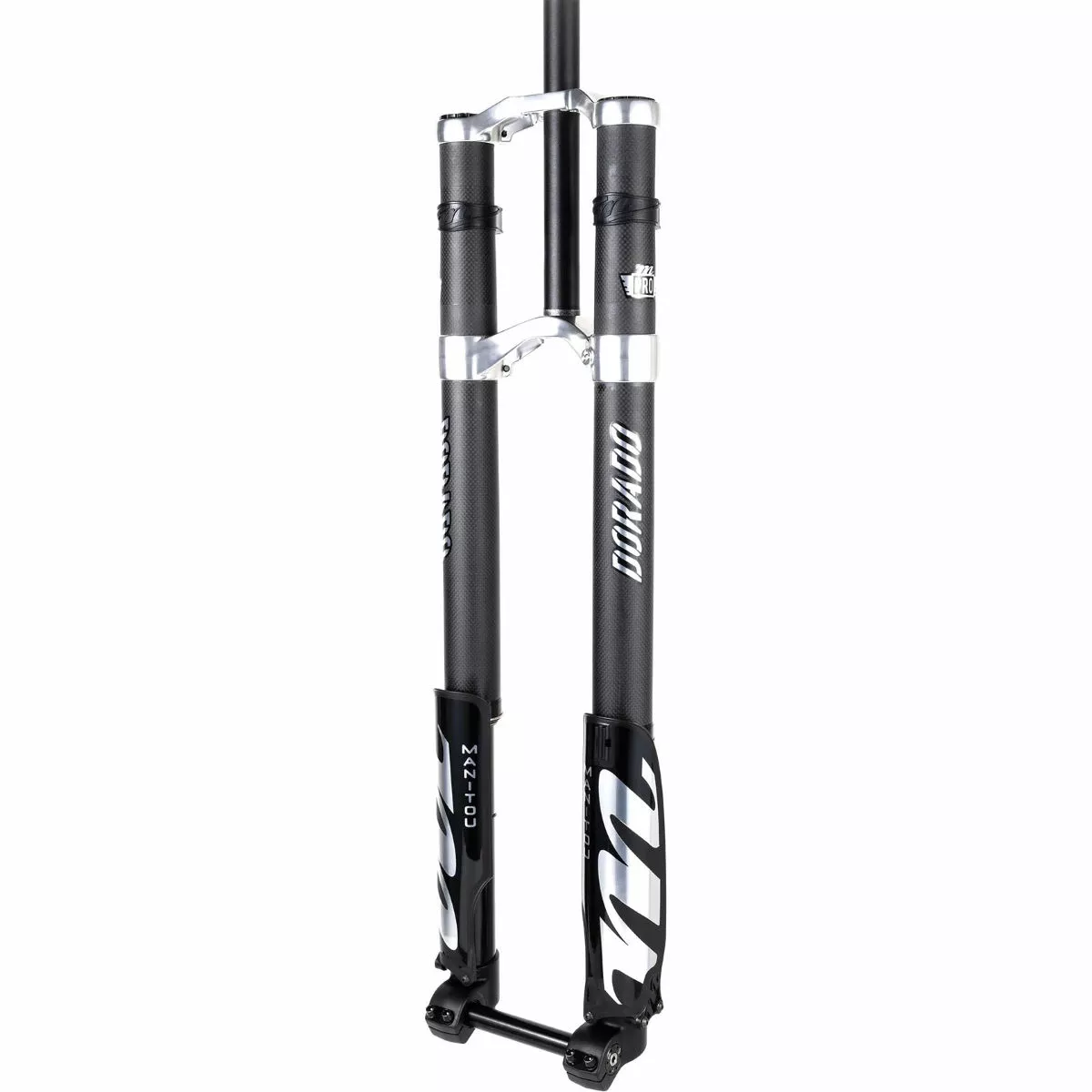

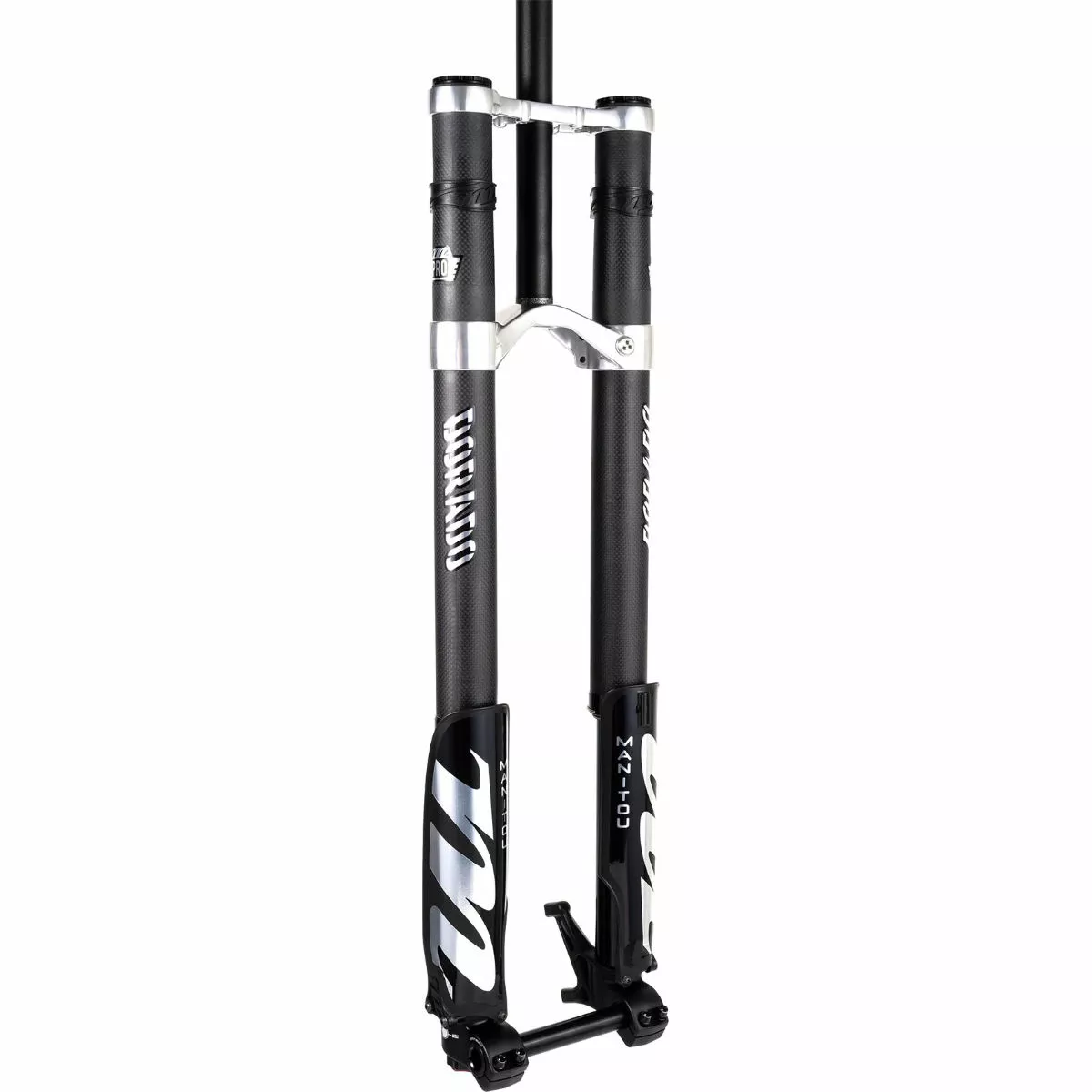

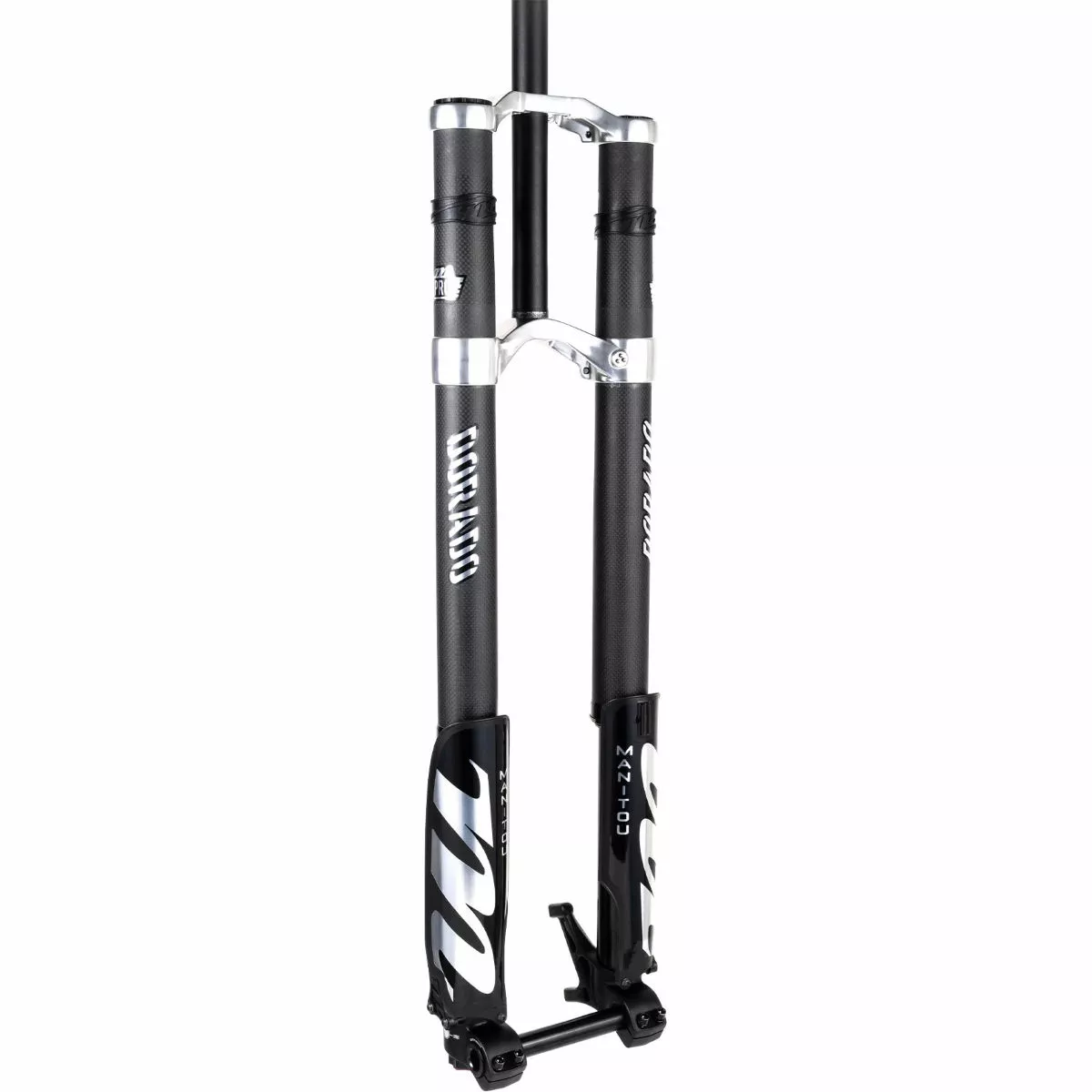

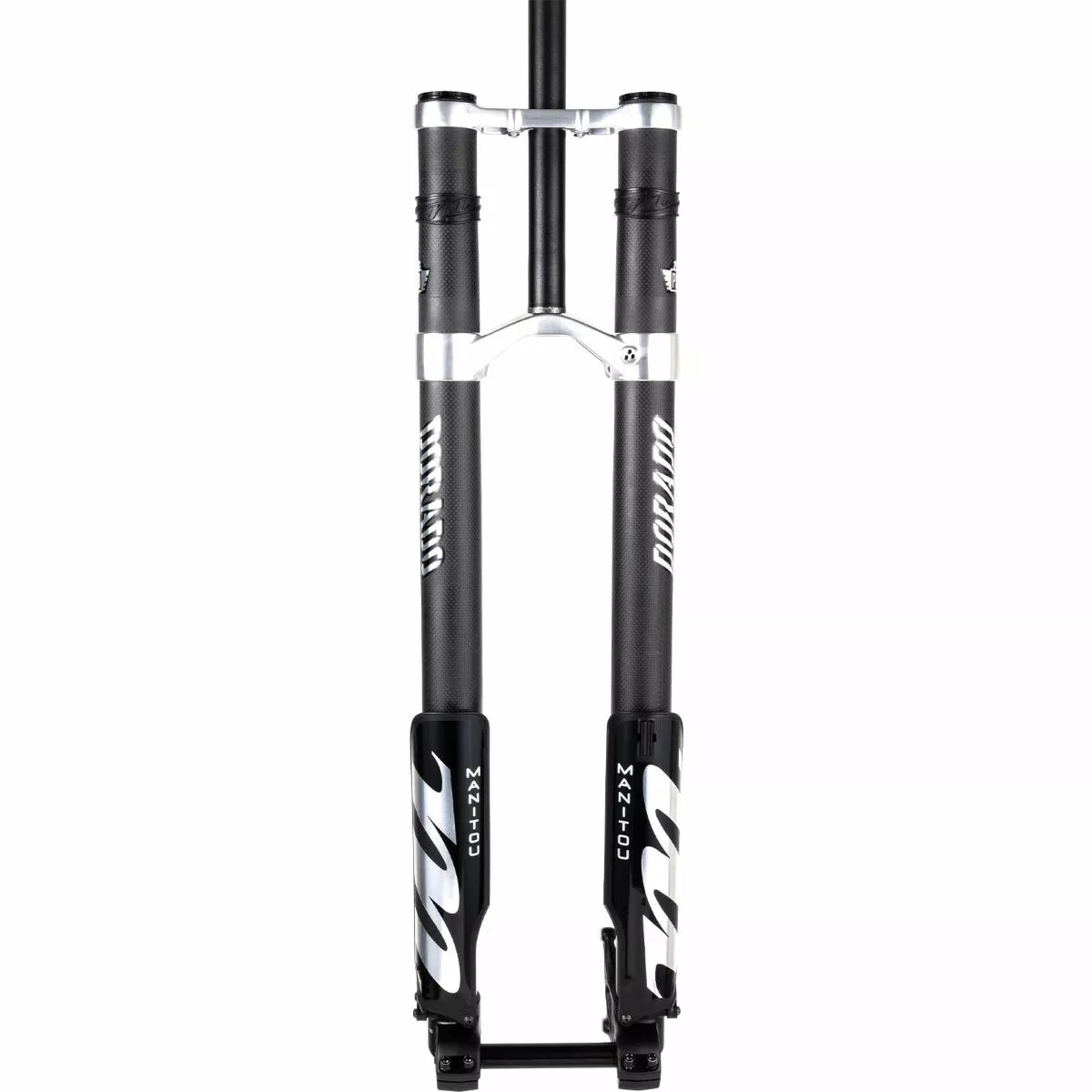

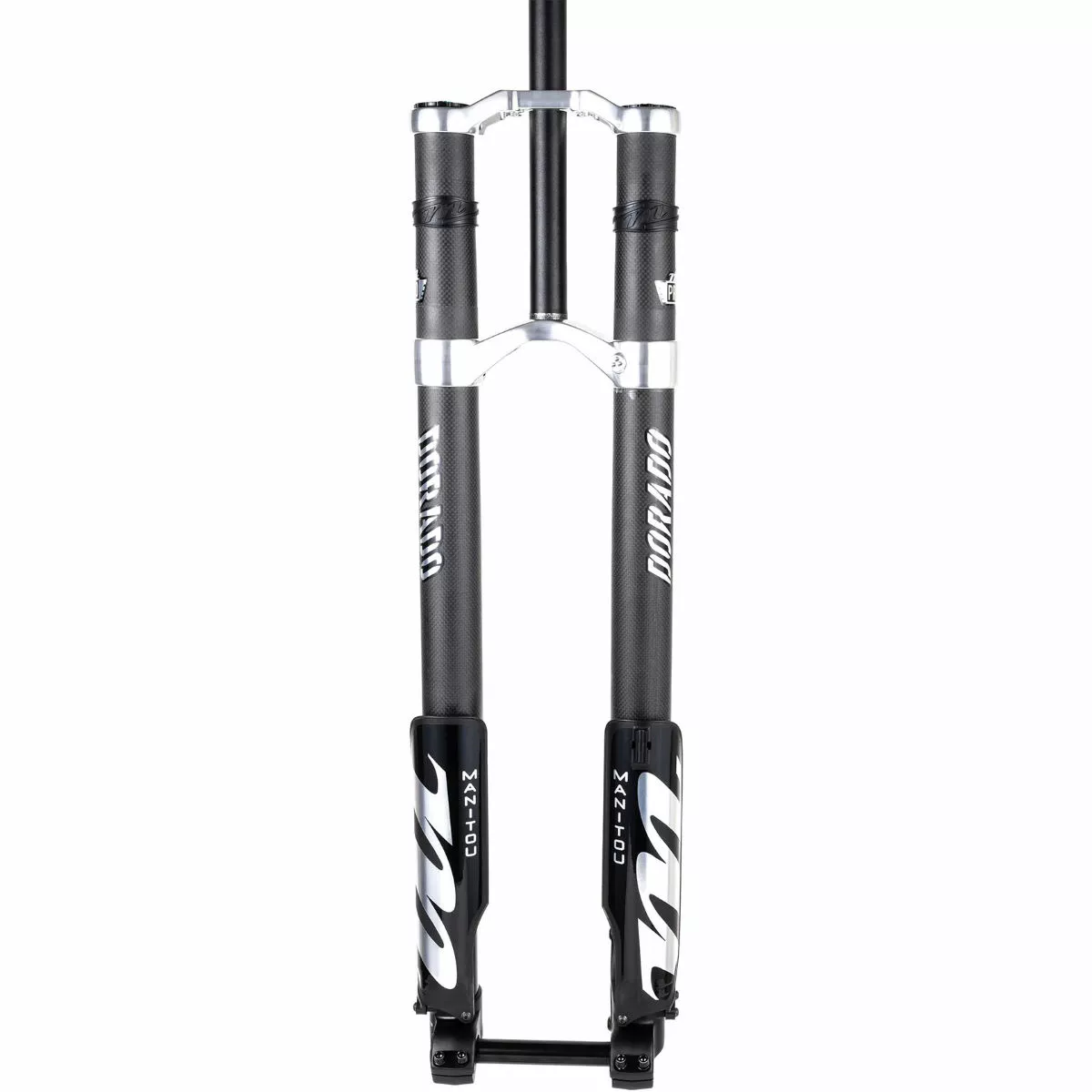

Manitou Dorado Pro Suspension Fork

Ready to turn the suspension world upside down, the legendary Dorado Pro is back and it comes fully kitted out with many of Manitou’s finest technologies. Engineered for downhill riding, this model features high-quality 6000 series aluminium legs with a carbon outer and carbon upper tubes delivering a fantastic combination of stiffness, durability and low weight performance. Its updated stiffer chassis is also paired with a sealed version of the TPC+ damper and an improved Dorado Air Spring with IRT volume adjuster. These technologies combined into one ultimate platform provides more than enough tunability to satisfy any savvy suspension tuner while being so easy to adjust that every rider can dial in their fork with ease.

Carbon Fibre and Inverted Design

After its debut 11 years ago, the Dorado Pro is once again dressed in carbon. In addition to looking amazing, the upper carbon tubes allow 238g in weight savings compared to alloy along with increased stiffness. Inverted forks provide an incredibly smooth and consistent feel due to the constant lubrication of the bushings and seals. Inverted forks also provide a major increase in fore-aft stiffness with much longer bushing overlap compared to traditional fork designs while maintaining torsional compliance which provides more control over rough trail sections.

Dorado Air Spring and TSR Trail Side Relief

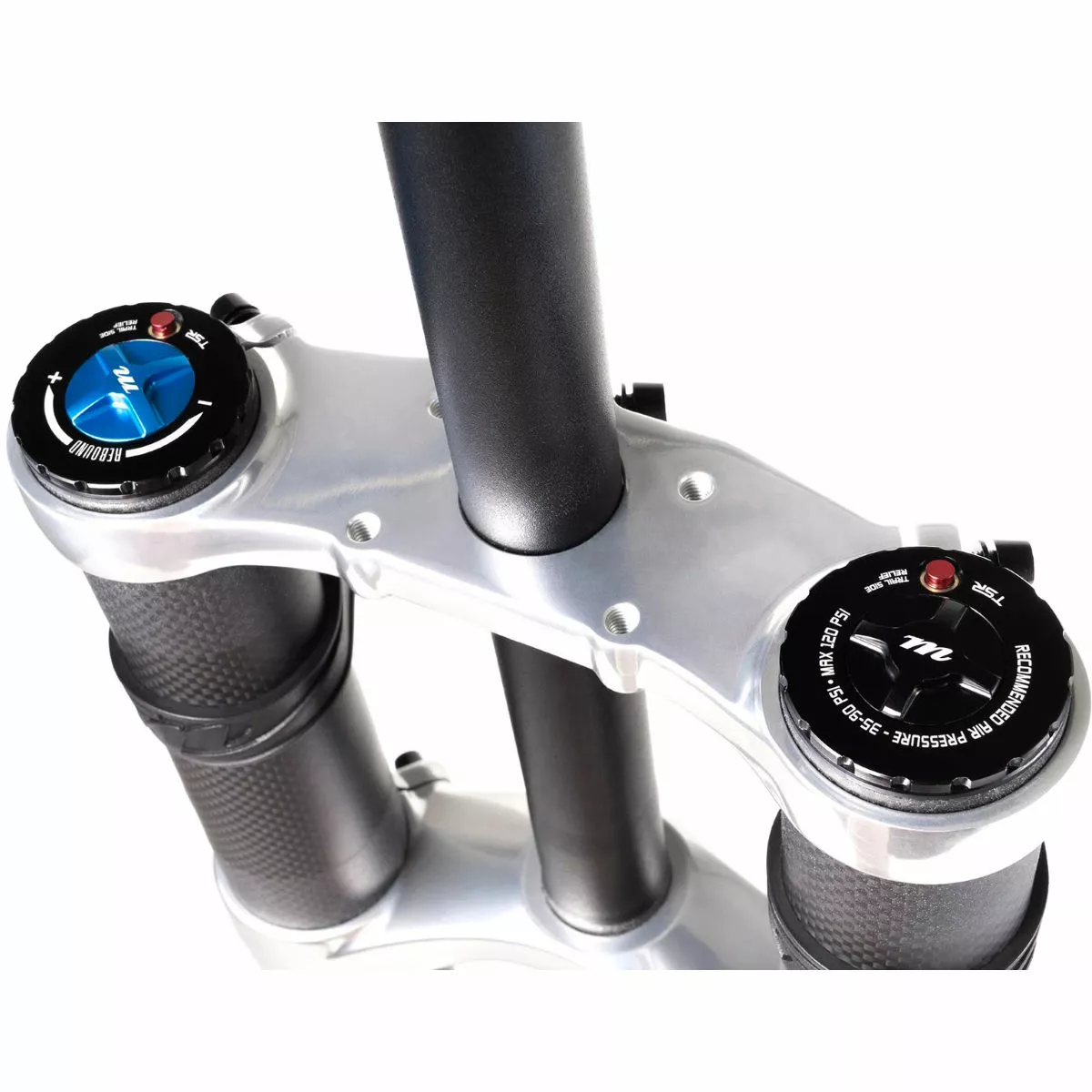

Dorado Air spring systems contain a unique balancing valve that equalises the positive and negative air chambers during the air fill process. This gives the spring rate a consistent feel without any flat or dead spots in the stroke, along with giving riders of different weights the same initial stroke feel. TSR Bleed Buttons allow excess pressure built up in the outer legs of the fork to be equalised with a simple press of the button located on the top cap.

TPC+ Twin-Piston Cartridge Damper

TPC+ is a velocity and position-dependent damping circuit that maintains light damping through small bumps when the fork is high in the travel. As the fork compresses deeper in the travel the secondary TPC+ circuit engages and increases the damping force for added support and bottom-out prevention. Additionally, an independent Hydraulic Bottom-out circuit further increases the damping force in the final 30mm of travel to soften deep travel events and prevent hard bottom out.

Additional Item Top Features:

Crown: Forged
Travel: 203mm
Adjustments: Air, IRT, Rebound, HS, and LS Compression
Offset: 47mm Flat Crown (27.5″); 57mm Drop Crown (29″)
Ride Height: 582mm (27.5″); 602mm (29″)
Brake Post Mount: 203mm (223 Max)
Max Tyre Size: 67mm
Extras: Threaded TSR Buttons
Options: Fender (sold separately)
E-Bike Compatible: No

Technologies:

Carbon Fibre Legs and the 37mm Chassis: Result in the stiffest and lightest Dorado to date. The carbon pro chassis is 27% stiffer than the previous 36mm version and 238g lighter than the new 37mm Expert version.

Inverted Design: Provides an incredibly smooth and consistent feel due to constant lubrication of the bushings and seals. The inverted design also provides a major increase in fore-aft stiffness compared to traditional forks while maintaining torsional compliance which provides more control to the rider over rough terrain.

Dorado Air Spring System: Contains a unique balancing valve that equalizes the positive and negative air chambers during the air fill process resulting in a consistent feel without any flat or dead spots. It also allows easy Travel Adjustability from 180 to 190 and 203mm without the need for any spare parts.

IRT (Infinite Rate Tune): Allows for advanced spring tuning by independently adjusting air pressures in the beginning and end stroke. IRT technology creates a secondary positive air spring that affects only the middle to end stroke of the fork. This allows the main air spring to be set to lower pressures for improved small bump sensitivity while maintaining mid-stroke support and moderate to aggressive end-stroke ramp-up.

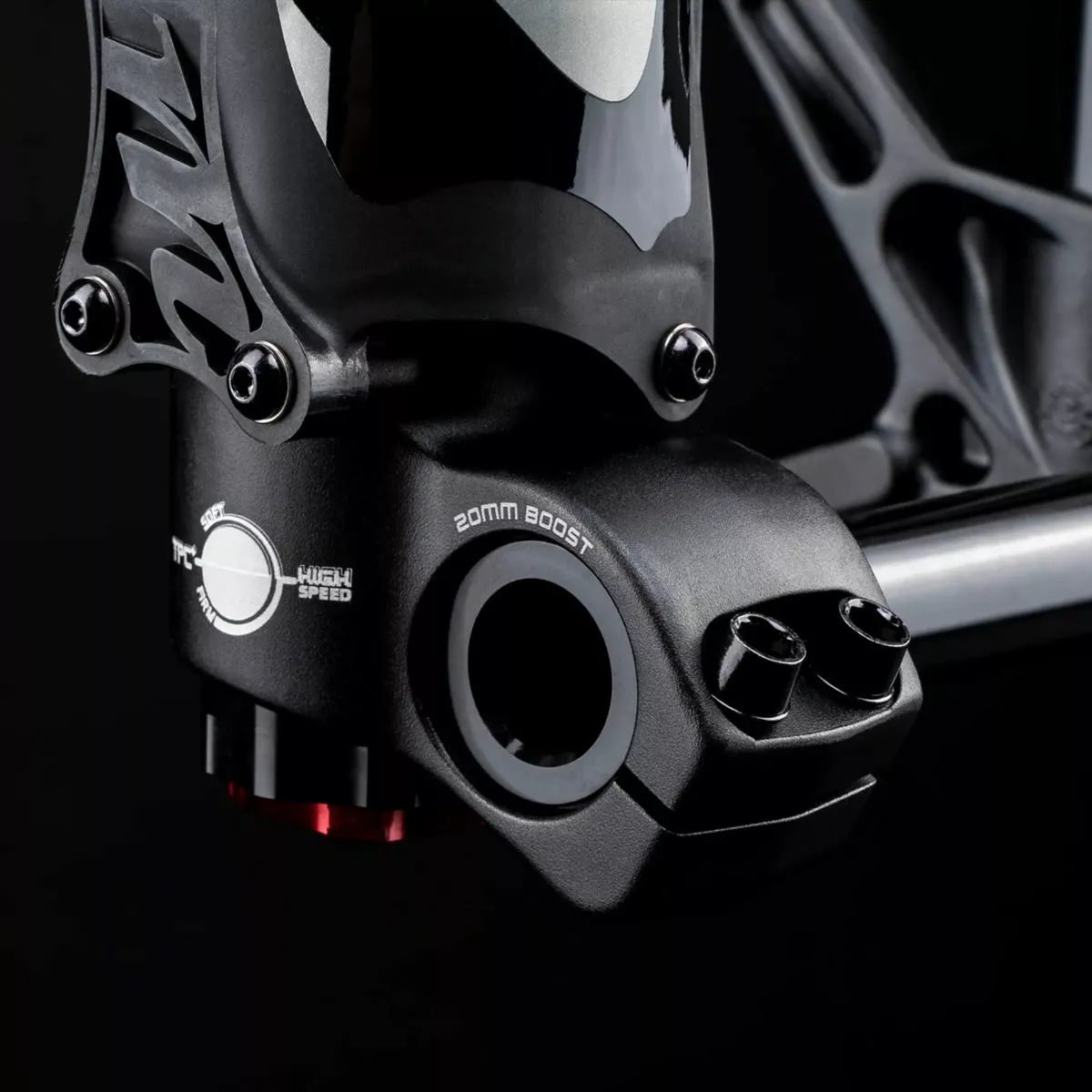

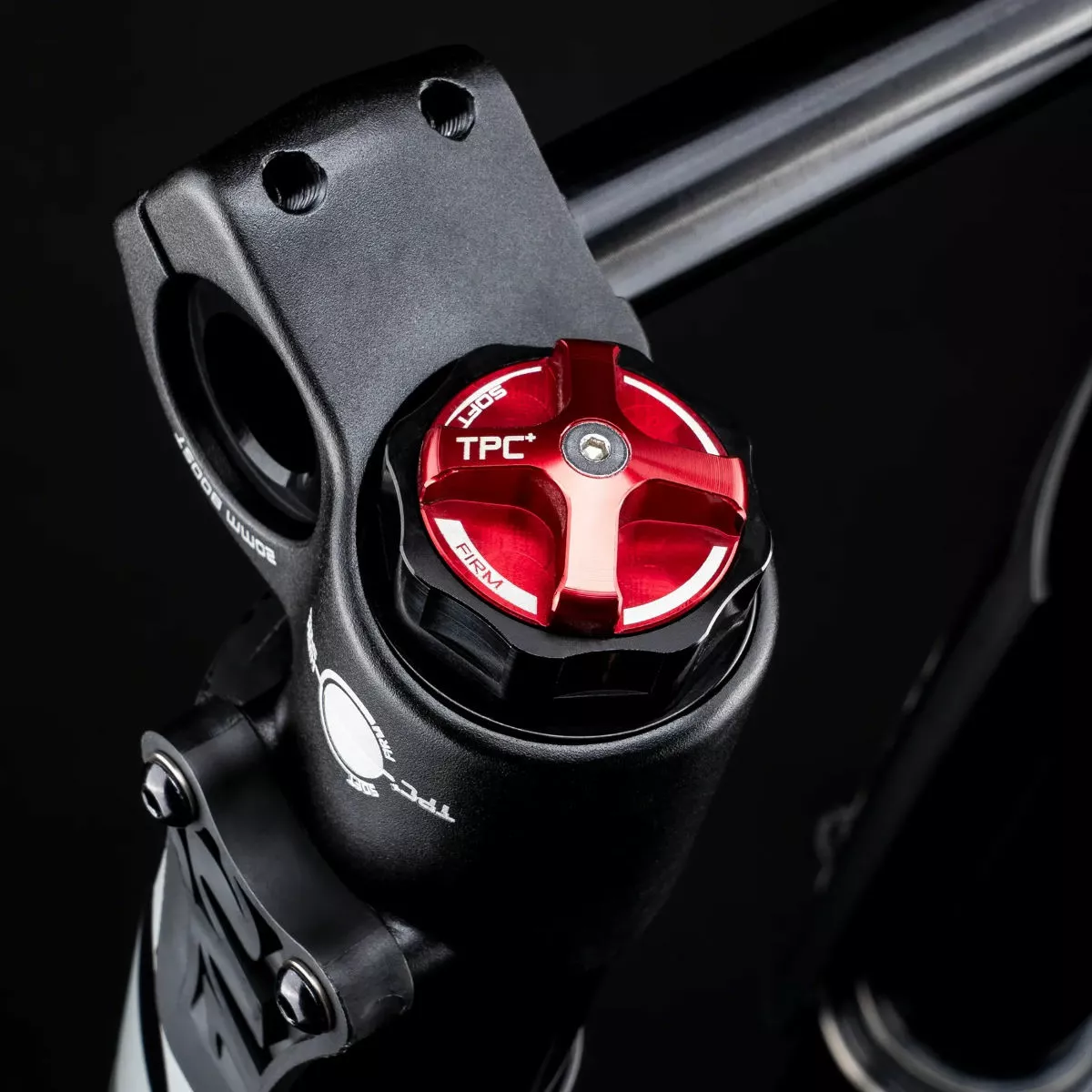

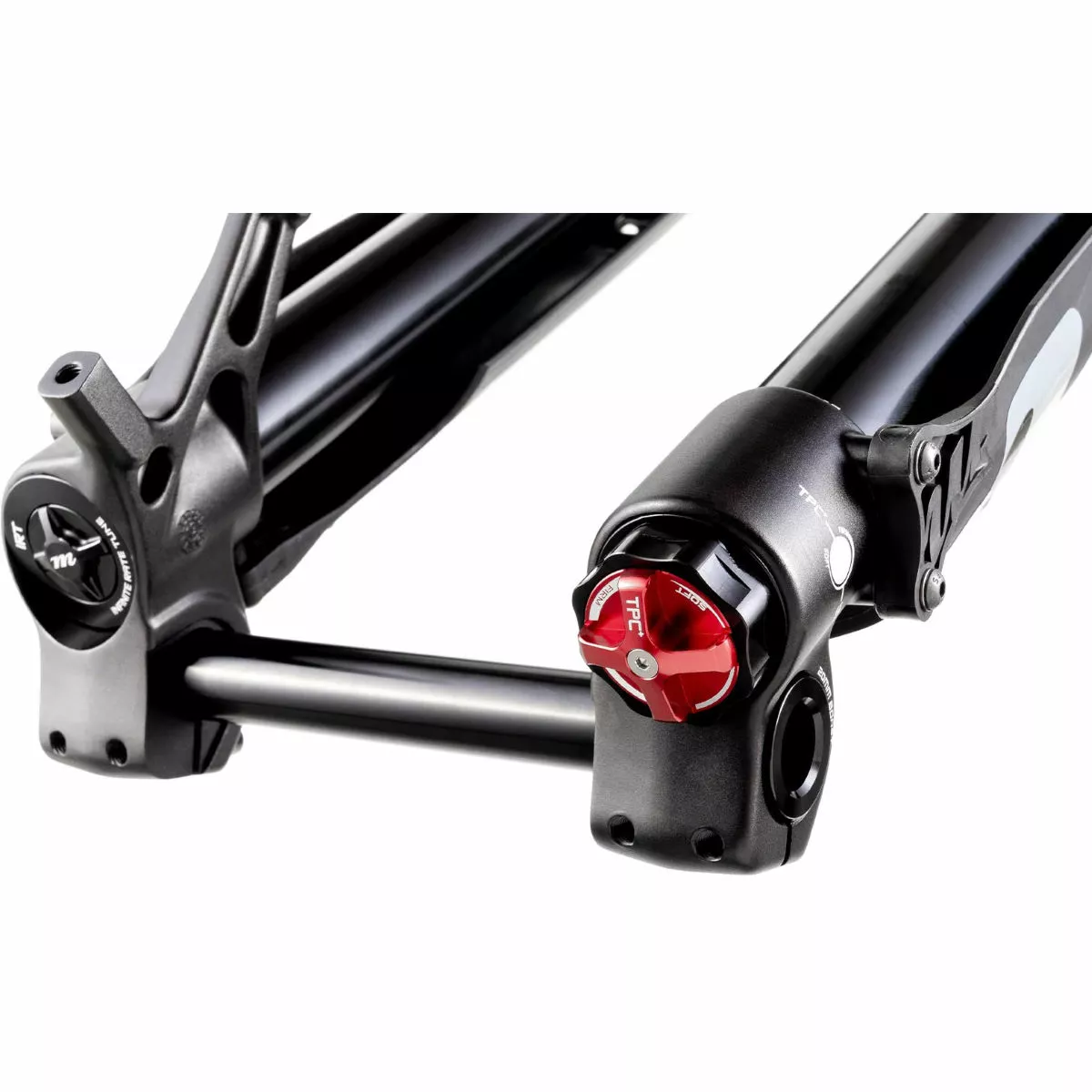

Sealed TPC+: Is a velocity and position-dependent damping circuit that maintains light damping thru small bumps when the fork is high in its travel. As the fork compresses deeper in the travel the secondary TPC+ circuit engages and increased the damping force for added support and bottom-out prevention. Additionally, an independent Hydraulic Bottom-out circuit further increases the damping force in the final 30mm of travel to soften deep travel events and prevent hard bottom out. The new cartridge design with spring-backed IFP fully seals damper oil for the most consistent damping on long demanding DH runs. Spring-backed IFP has improved performance during extreme riding, unlike a bladder, an IFP pressurizes the oil at the initial stroke eliminating any cavitation for the most consistent damping.

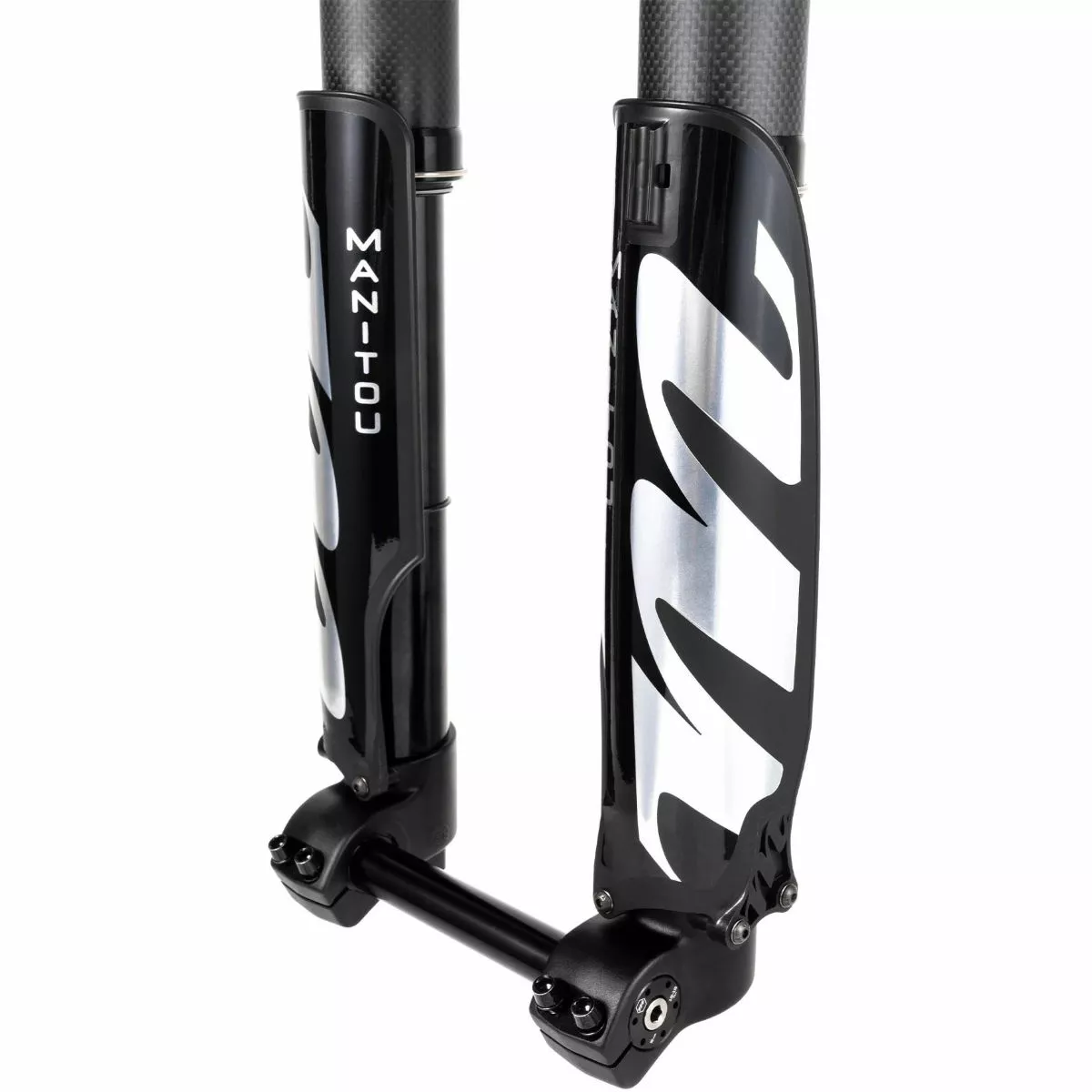

Fits Both 29″ and 27.5″ Wheels: Markings on the outer legs indicate the proper clamping point for ideal axle to crown measurements depending on wheel size. The fork legs can be used with both wheel sizes.

Two Crown Options: Are available with this fork (select from the drop-down menu). The 47 offset is designed to work with 27.5″ wheels and intended axle to crown. The 57 offset crown is designed for 29″ wheels and axle to crown. For those looking to run the lower offset crown with 29″ wheels please reference our fit document to see if your headtube length is compatible.

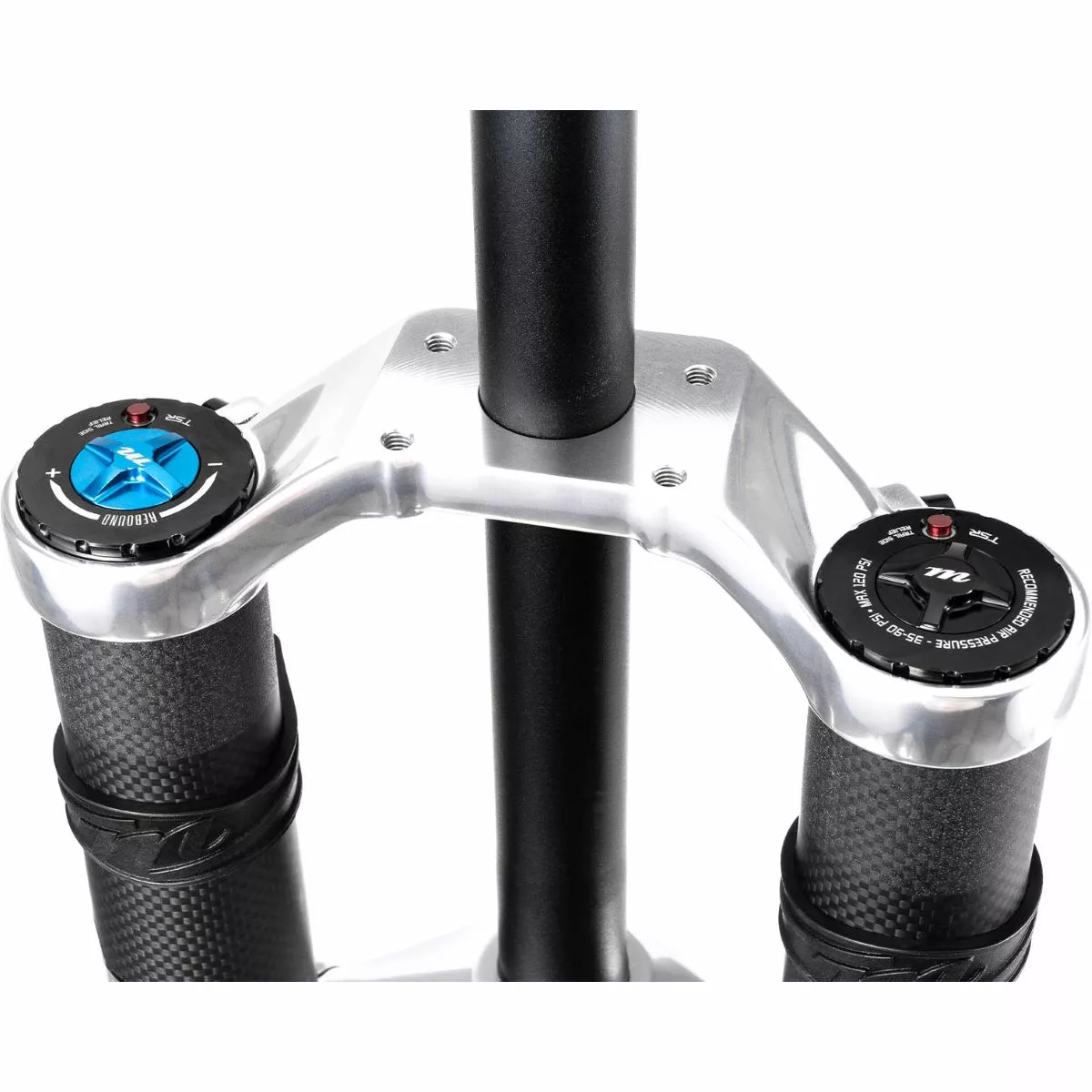

TSR Bleed buttons: Allow you to release excess pressures built up in the outer legs of your fork with a simple tap of the button. This keeps your fork smooth and supple all day long.
Save

Manufacturer’s Part Numbers:

191-37419-A101 Black 27.5″ Short Offset
191-37419-A201 Black 29″ Long Offset
