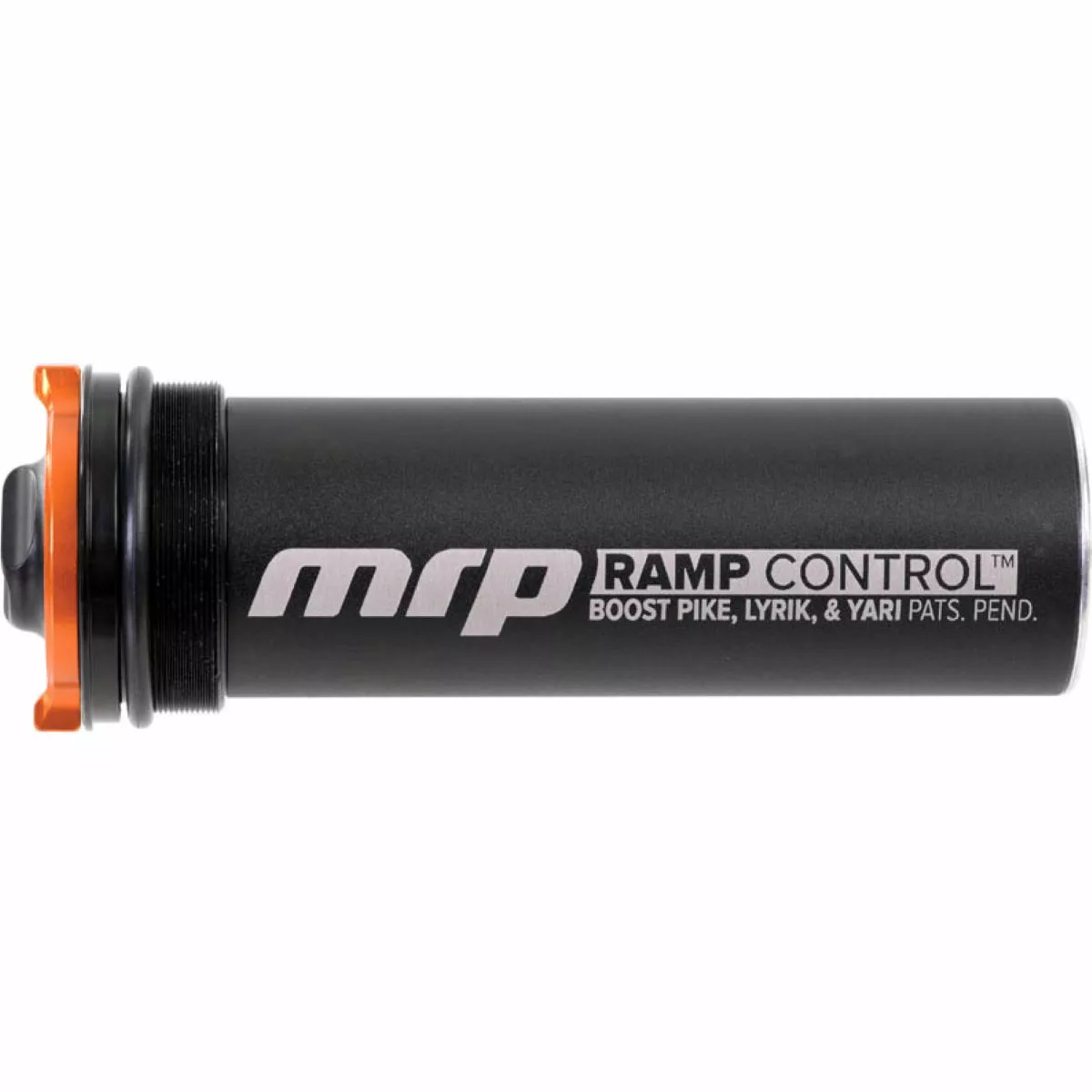

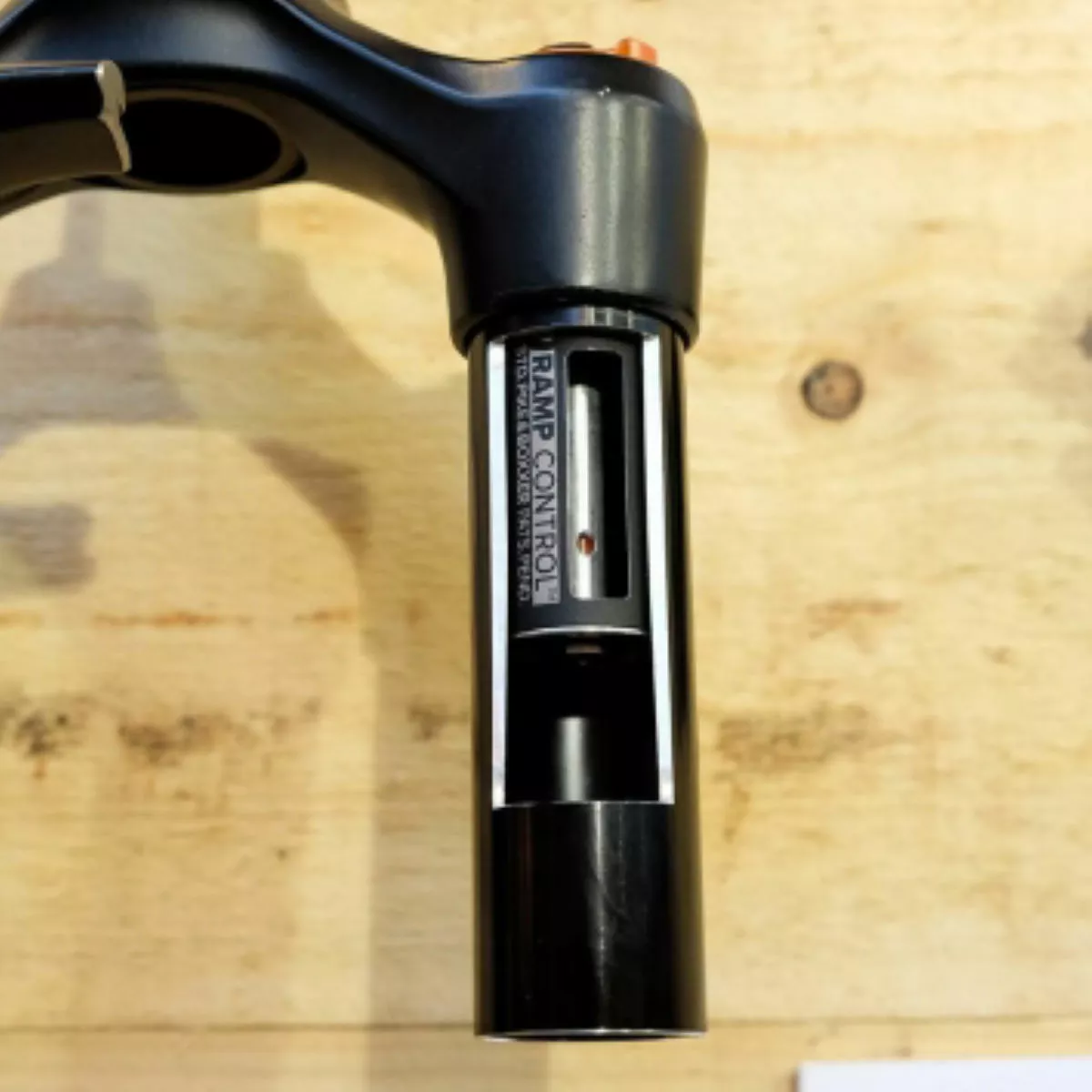

MRP Ramp Control Cartridge

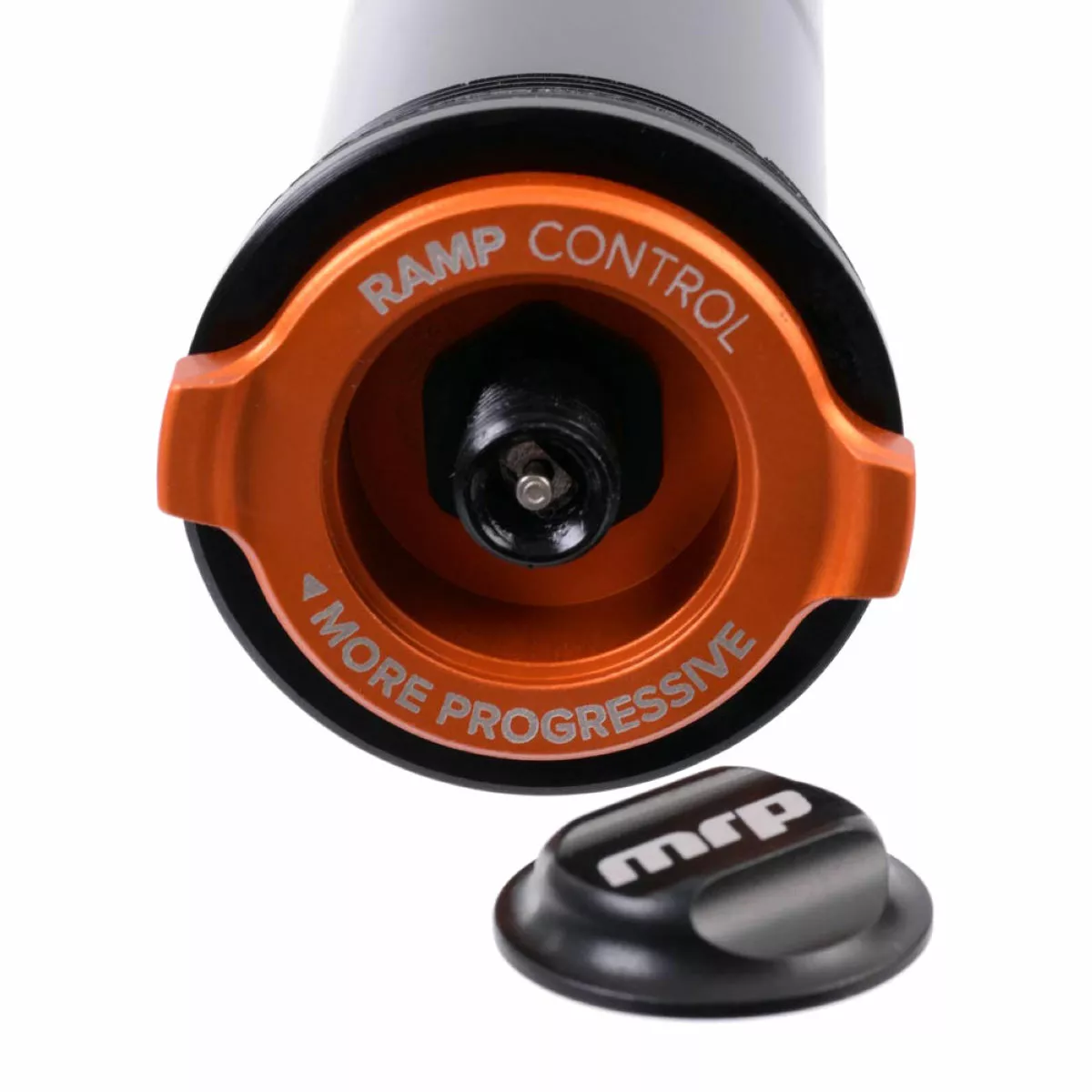

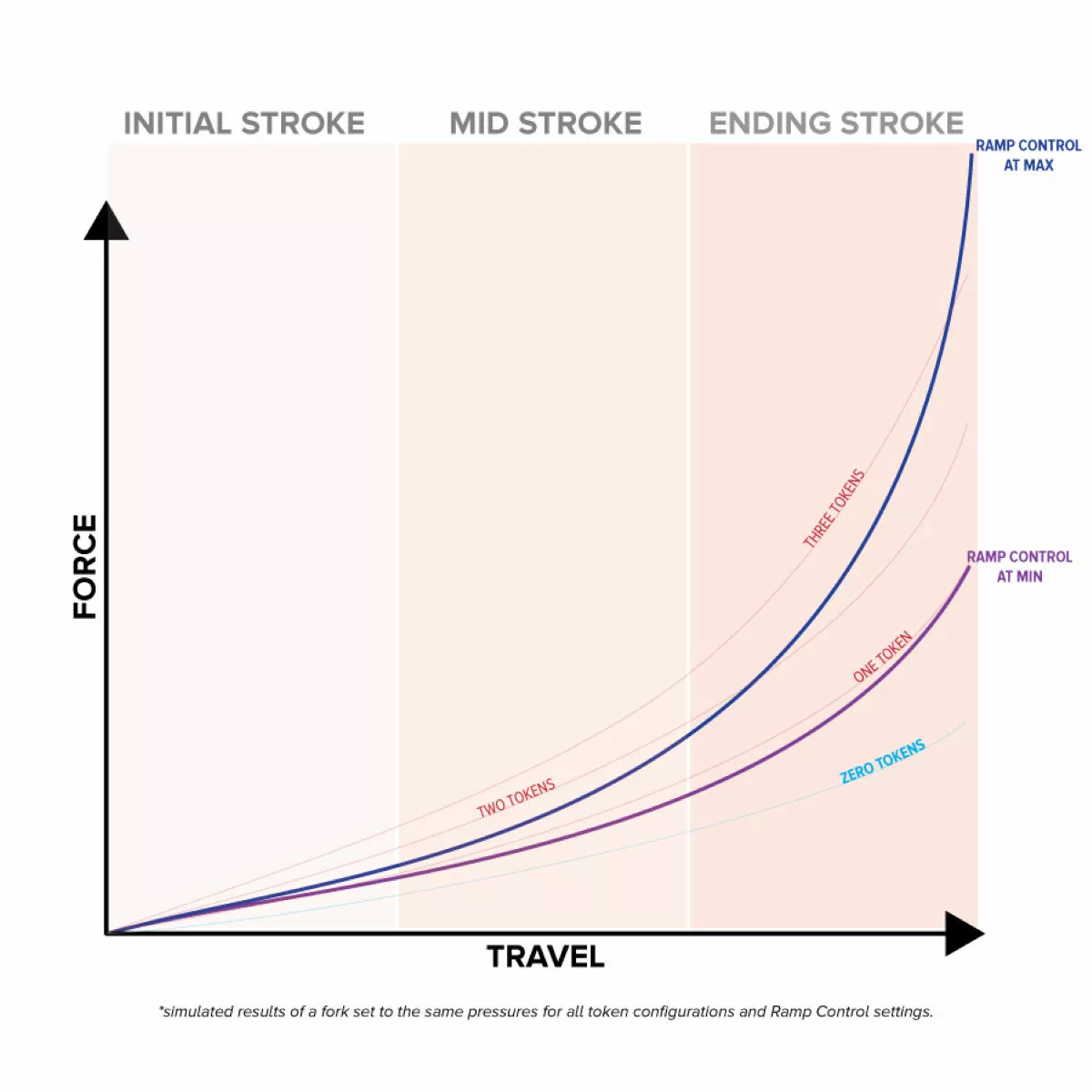

With this part installed on your forks, there is no more need to tinker around with bottomless tokens or spacers to find the right travel progression. This means you can quickly tweak the fork’s volume control on the go, which is ideal if you’re out on an all-day session on different types of trails. Being able to tune both the air pressure and the damper settings enable you to prevent bottom-out and to isolate big hits.

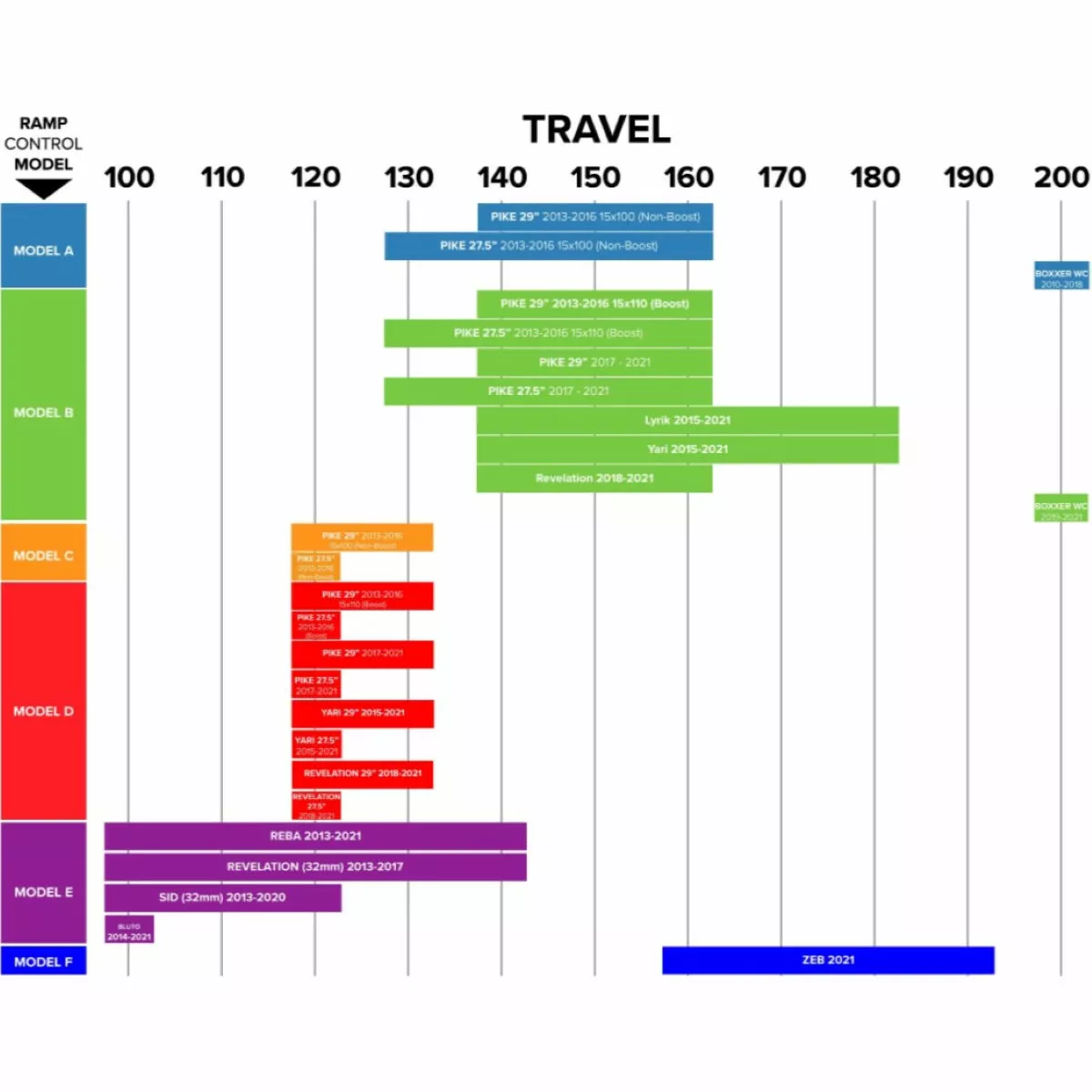

Compatibility:

RockShox Model A

·        will fit 2013-2016 Pike forks with 15×100 axle spacing. Not compatible with Dual Position Air forks. Recommended for 140mm+ 29”, 27.5+, 26” and 27.5” forks.

·        will fit 2010 – 2017 and Boxxer World Cup (air-sprung) forks. Not compatible with Dual Position Air forks.

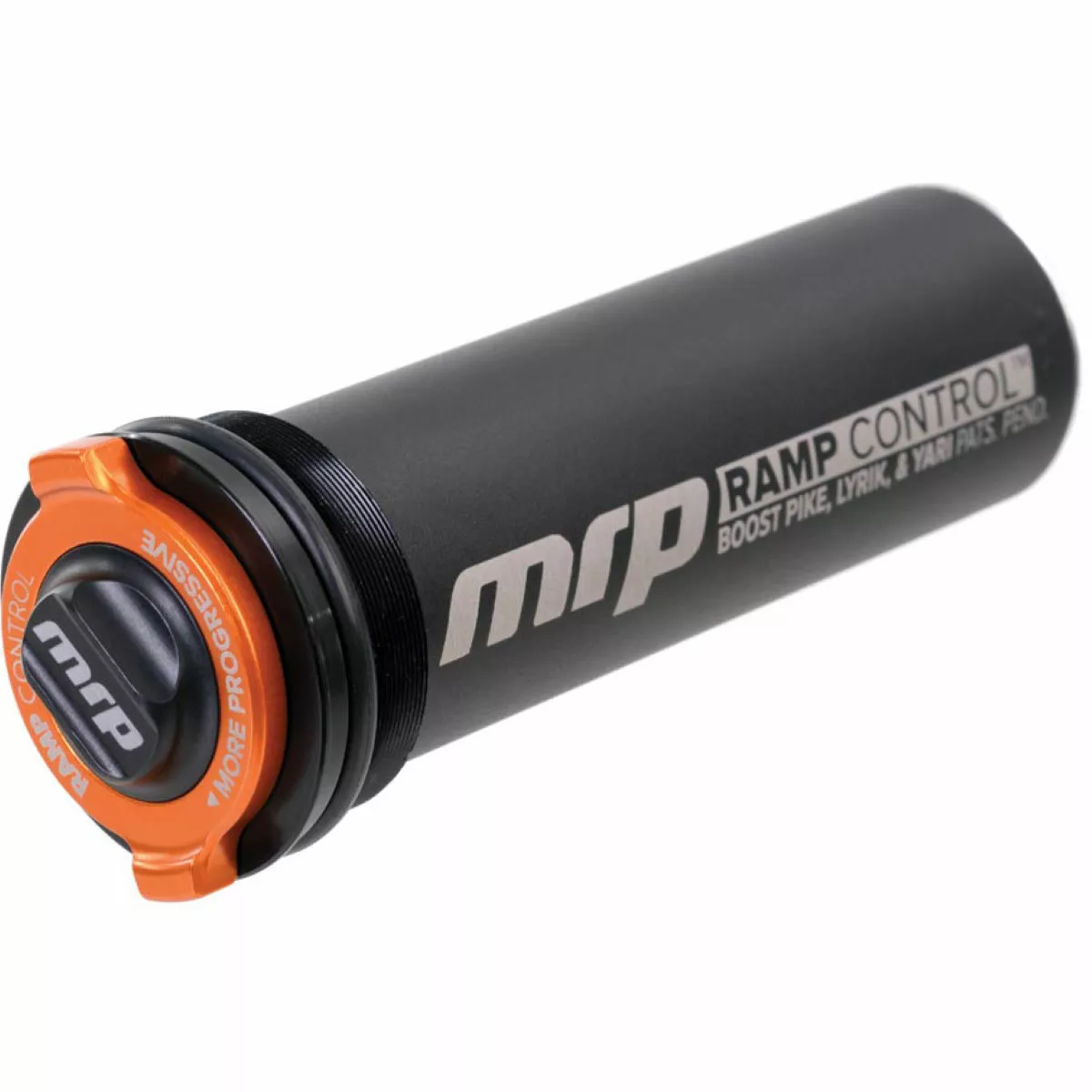

RockShox Model B

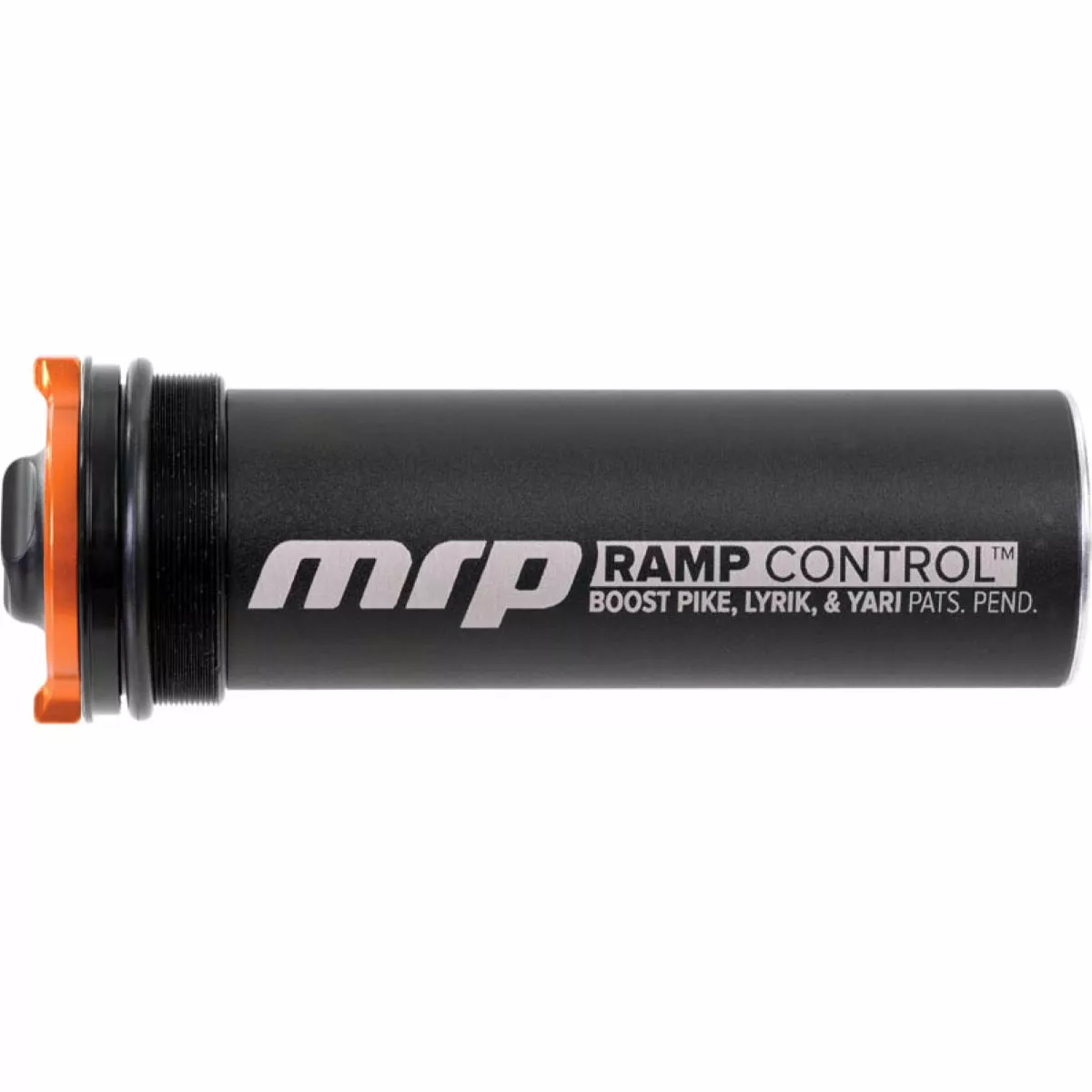

·        will fit 2015 and newer Pike forks with “Boost” 15×110 axle spacing and all 2017 and newer Pike forks (regardless of axle spacing). Not compatible with Dual Position Air forks. Recommended for 140mm+ 29”, 27.5+, 26” and 27.5” forks.

·        will fit all 2017 and newer Lyrik and Yari forks. Not compatible with Dual Position Air forks. Recommended for 140mm+ 29”, 27.5+, 26” and 27.5” forks.

·        will fit all 2017 and newer Revelation (35mm). Not compatible with Dual Position Air forks. Recommended for 140mm+ 29”, 27.5+, and 27.5” forks.

·        will fit 2020 Boxxer World Cup (air-sprung) forks. Not compatible with Dual Position Air forks.

RockShox Model C

·        will fit 2013-2016 Pike forks with 15×100 axle spacing. Solo air models only. Recommended for 120 and 130mm 29” and 120mm 26” and 27.5” forks. Not compatible with Dual Position Air forks. Recommended for 120 and 130mm 29”/27.5+ and 120mm 27.5” and 26” forks.

RockShox Model D

·        will fit 2015 and newer Pike forks with “Boost” 15×110 axle spacing, all 2017 and newer Pike forks (regardless of axle spacing). Not compatible with Dual Position Air forks. Recommended for 120 and 130mm 29”/27.5+ and 120mm 27.5” and 26” forks.

·        will fit all 2017 and newer Revelation (35mm). Not compatible with Dual Position Air forks. Recommended for 120 and 130mm 29”/27.5+ and 120mm 27.5” forks.

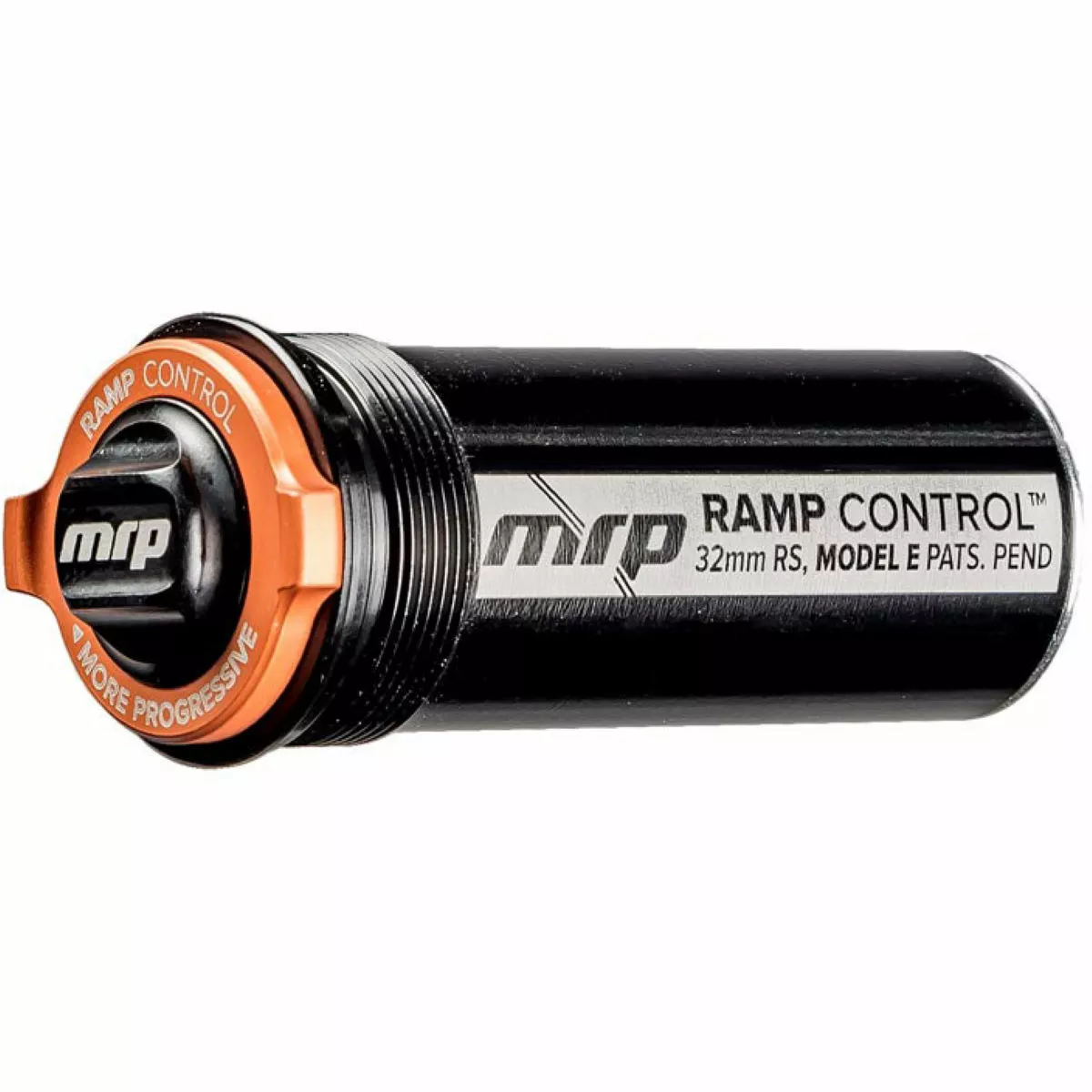

RockShox Model E

·        will fit 2013 and newer Reba, Revelation (32mm models only), and SID forks and 2014 and newer Rock Shox Bluto forks. Not compatible with Dual Position Air forks. Recommended for 100-140mm 29”, 27.5+, 27.5”, 26”, and Fat forks.

RockShox Model F

·        will fit 2020 and newer Zeb forks. Not compatible with Dual Position Air forks. Compatible with all travels and both wheel-size options.

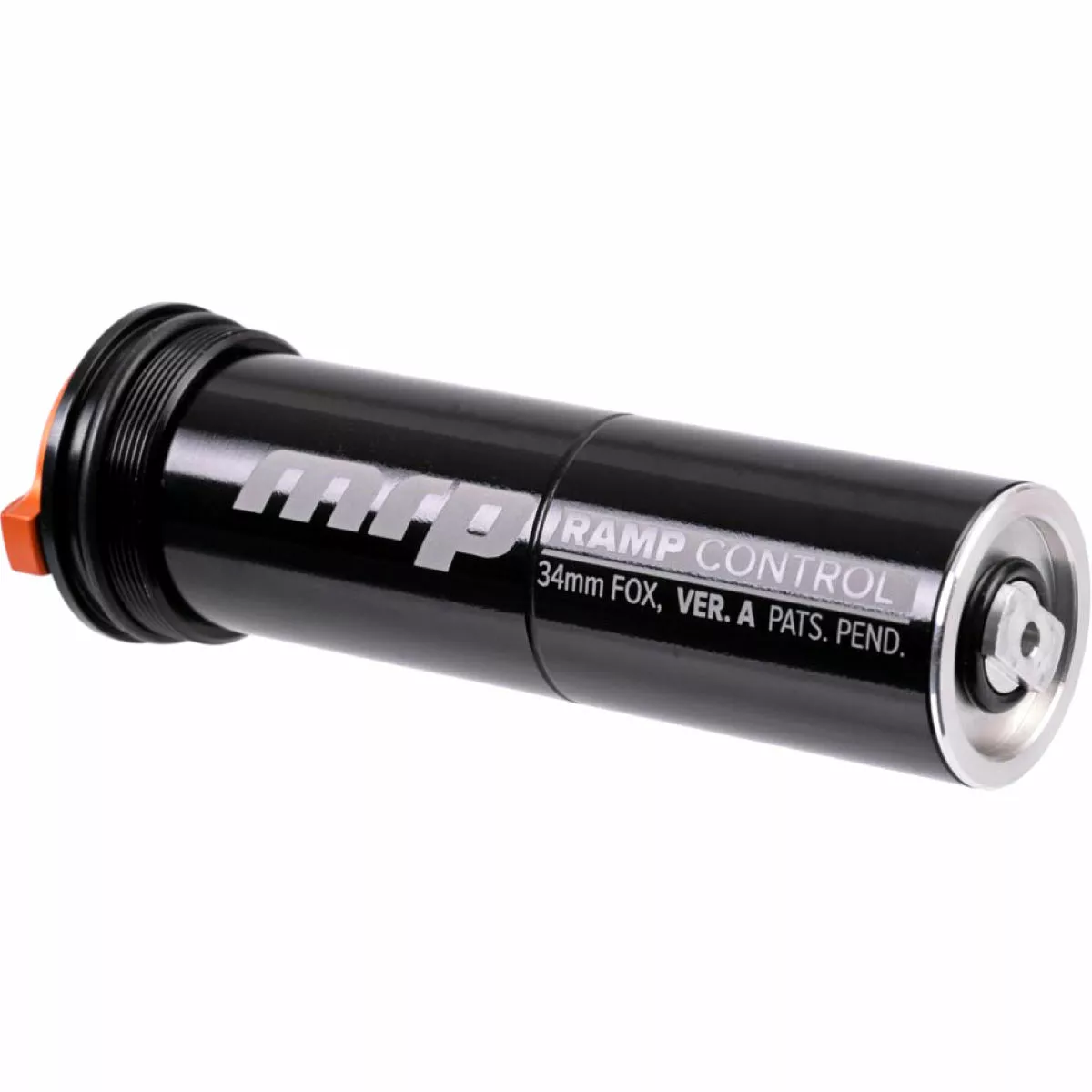

Fox Model A

·        will fit 2016 and newer Fox 34 Float forks with the FIT 4 and Grip dampers. Recommended for 140-160mm 29”, 27.5+, and 27.5” forks.

Fox Model B

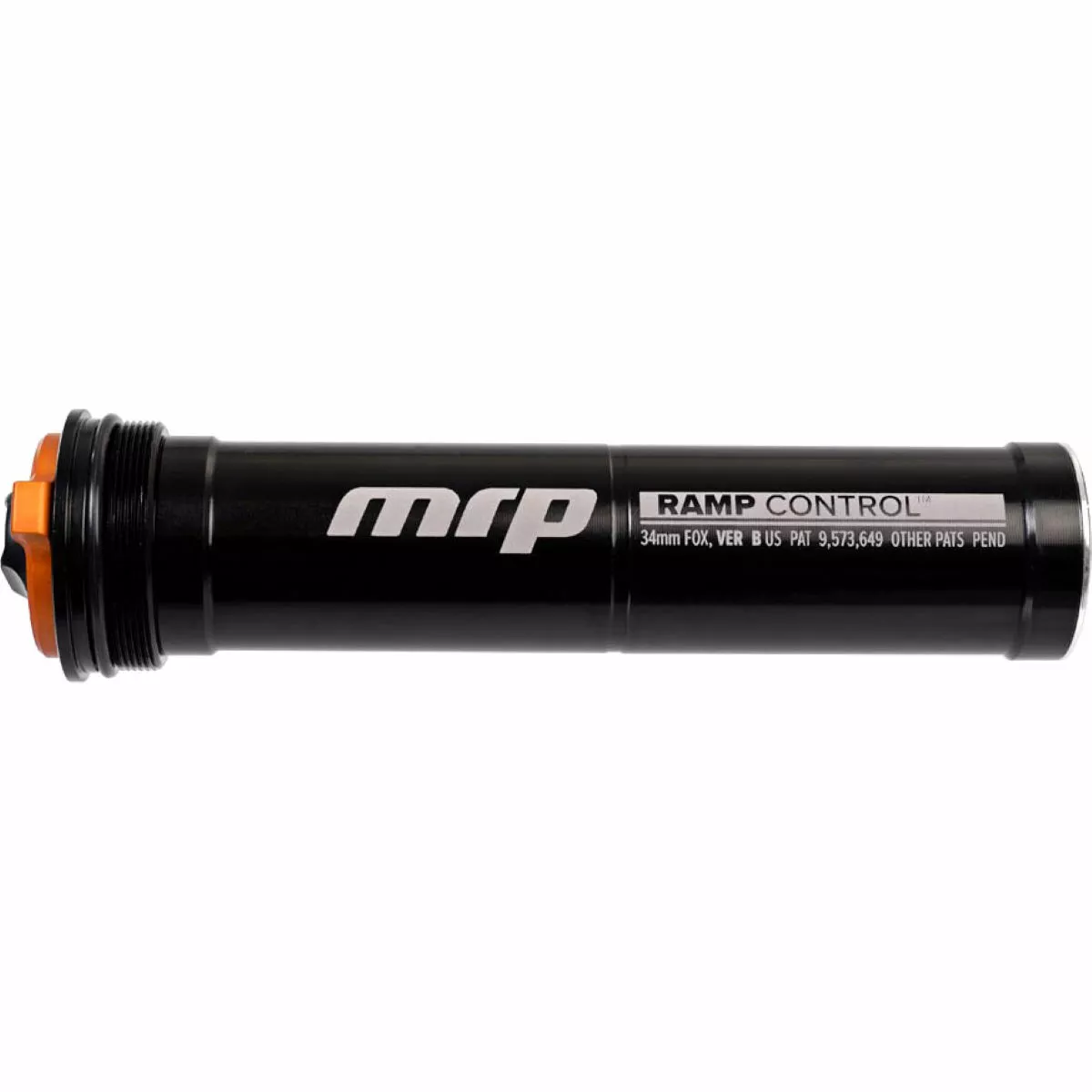

·        will fit 2016 and newer Fox 34 Float forks with the FIT 4 and Grip dampers. Recommended for 110-130mm 29”, 27.5+, and 27.5” forks.

Fox Model C

·        will fit 2016 and newer Fox 32 Float forks with the FIT 4 and Grip dampers. Recommended for 100-130mm 26”, 27.5” and 29″ forks.

Fox Model D

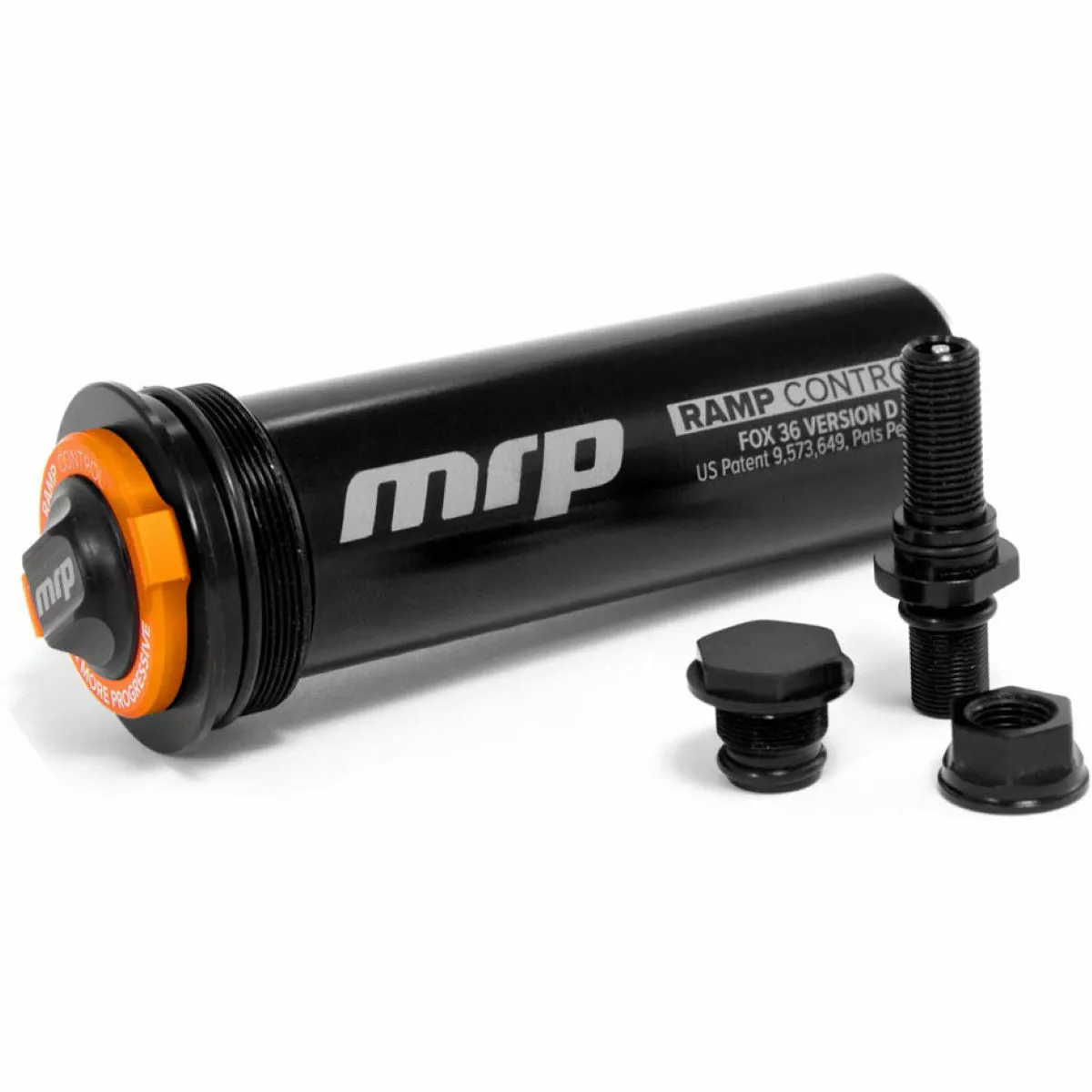

·        will fit 2015-2017 Fox 36 Float forks with the FIT 4, RC2, and Grip dampers. Recommended for 140-180mm 29”, 27.5+, and 27.5” forks.

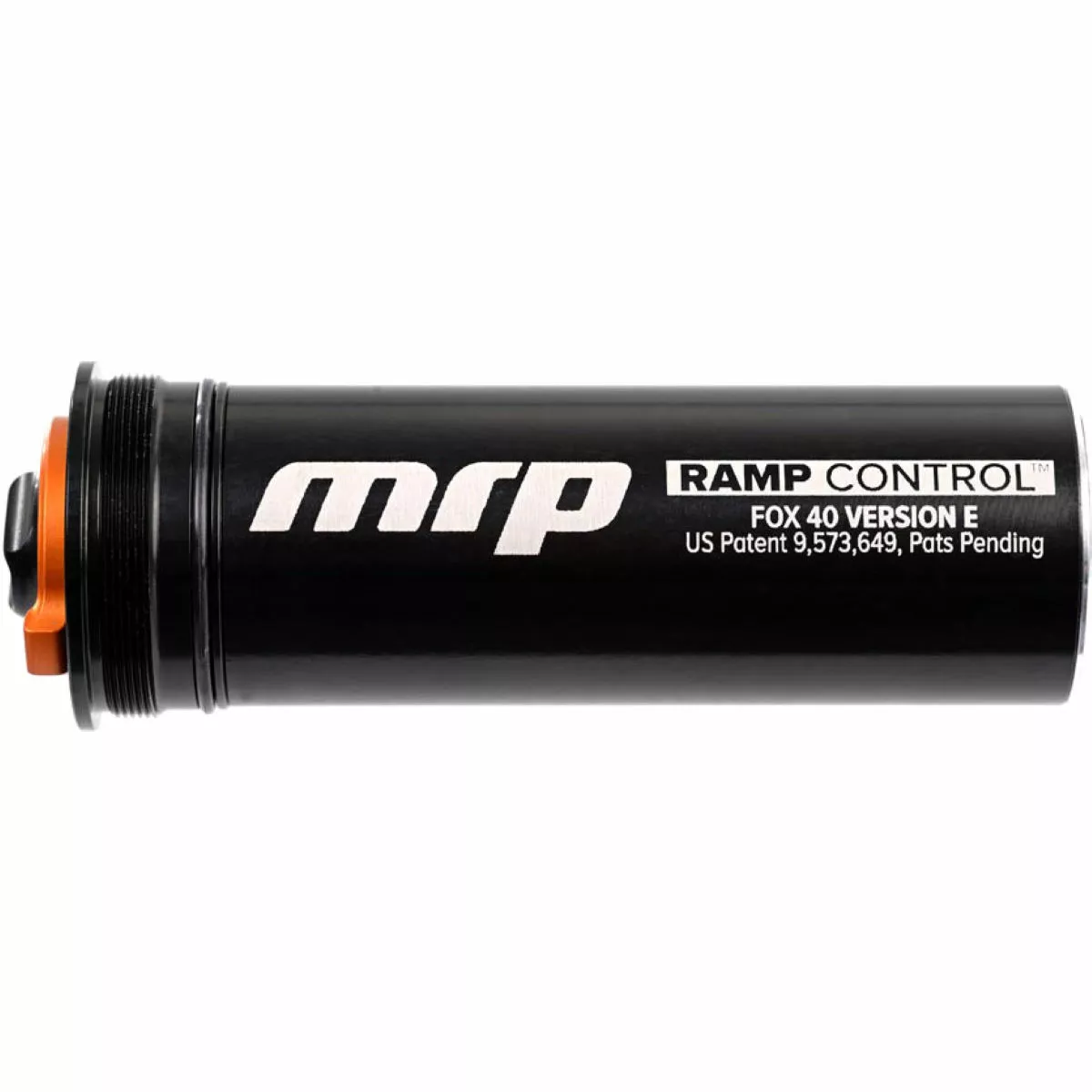

Fox Model E

·        will fit 2016 and newer Fox 40 Float Factory and Performance Elite forks.

Fox Model F

·        will fit 2018-2020 Fox 36 Float forks with the FIT 4, RC2, and Grip dampers. Recommended for 140-180mm 29”, 27.5+, and 27.5” forks.

·        will fit 2019-2021 Marzocchi Z1, all travel options.

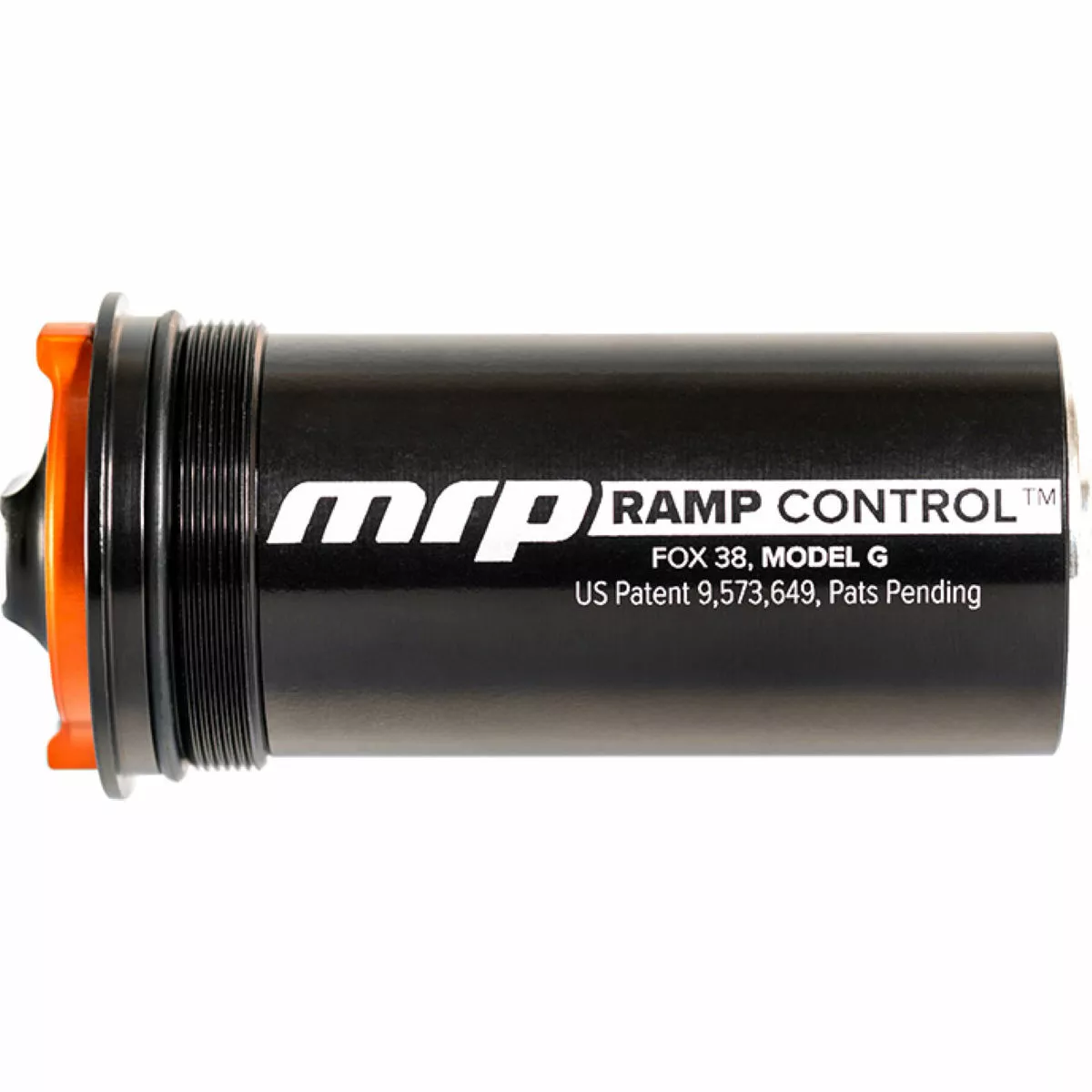

Fox Model G

·        will fit 2021 and newer Fox 38 Factory and Performance forks.
