Nukeproof Mega Carbon 297 MX Kit

The 297 MX platform uses a 29″ wheel at the front and a 27.5″ at the rear, giving you the perfect balance of pace, stability, agility and control for riding anywhere on Earth. This kit optimises your Mega 290 into a custom super-enduro that ensures more front-end grip, enhanced rolling efficiency and playfulness on steep descents and technical terrain sections.

For over 10 years, Nukeproof’s best-selling model; the Mega has been racking up awards on Enduro stages and in the press around the world. With 4 Enduro World Series titles to its name, the Mega has become an icon that is synonymous with racing. The Nukeproof Mega has been on a constant development path to meet the demands of its athletes and customers alike, resulting in the launch of the latest Mega 297.

This Nukeproof Mega 297c MX kit includes everything you need* to convert a 290c Mega V4 frame into a 297c MX bike, running a 29” front and 27.5” rear wheel. Why would you want to do that? A mixed wheel set-up uses a 29” wheel up front to maximise grip and rolling efficiency and replaces the 29” with a 27.5” wheel out back. The smaller 27.5” rear wheel ensures nimble handling and extra clearance for riders when leaning off the back of the bike (Especially on steep terrain).

For a carbon Mega 290c frame conversion to 297c, no additional frame parts are required to complete the installation. All current 290c frame parts will transfer to the MX kit as shown in the fitting guide.

Please Note: You will require a Boost 148mm 27.5” Rear wheel and tyre, not included.

The MX kit is compatible with Mega V4 Carbon frames but will also work on a Mega 290 V4 Alloy frame. To complete an install to a Mega V4 Alloy you will also need the carbon lower swing link kit which can be found here and brake mount which can be found here. New gear cable and brake olive and barb will be required in most cases.

To view the Nukeproof Mega MX Install Guide, please click here.

Features:

Parts Included:

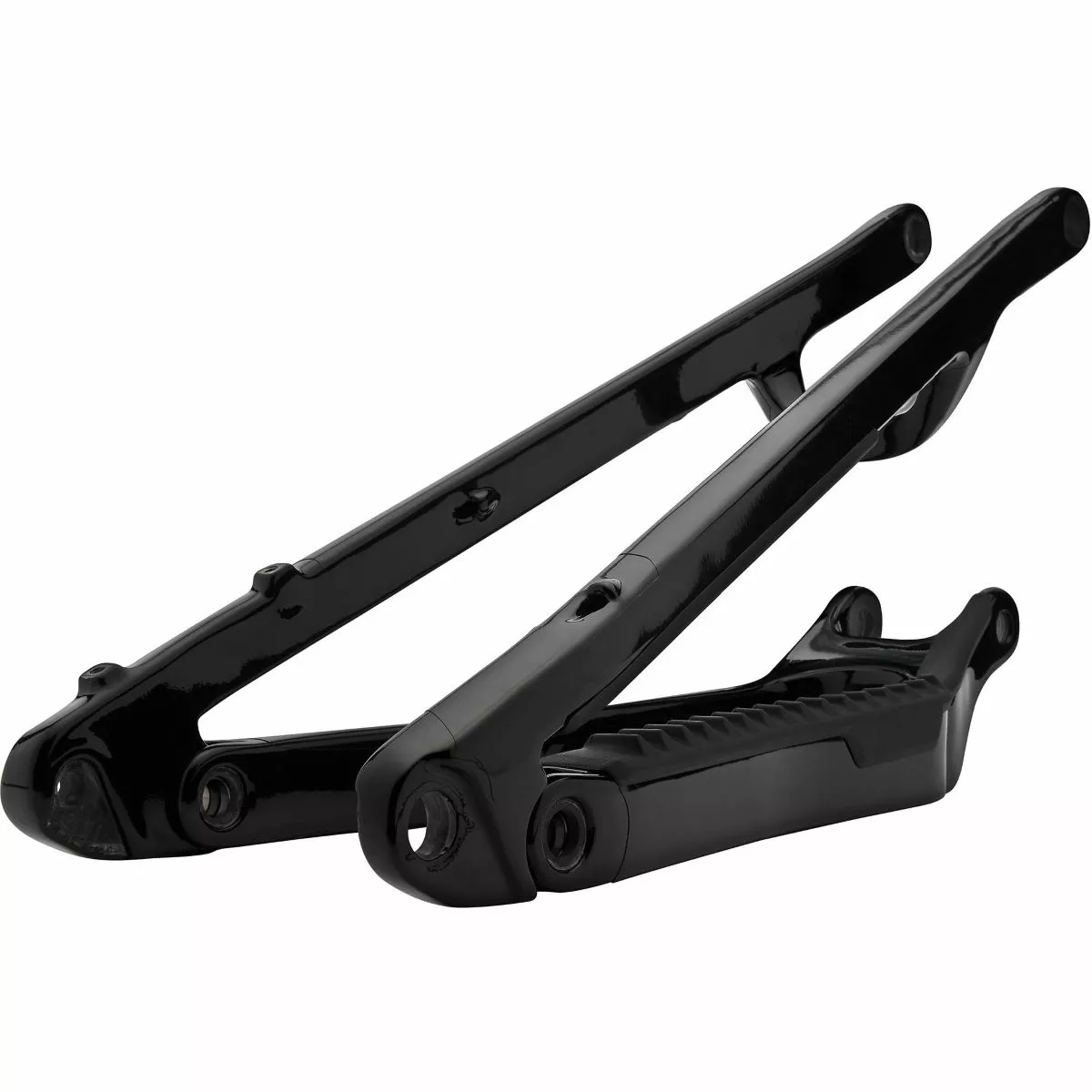

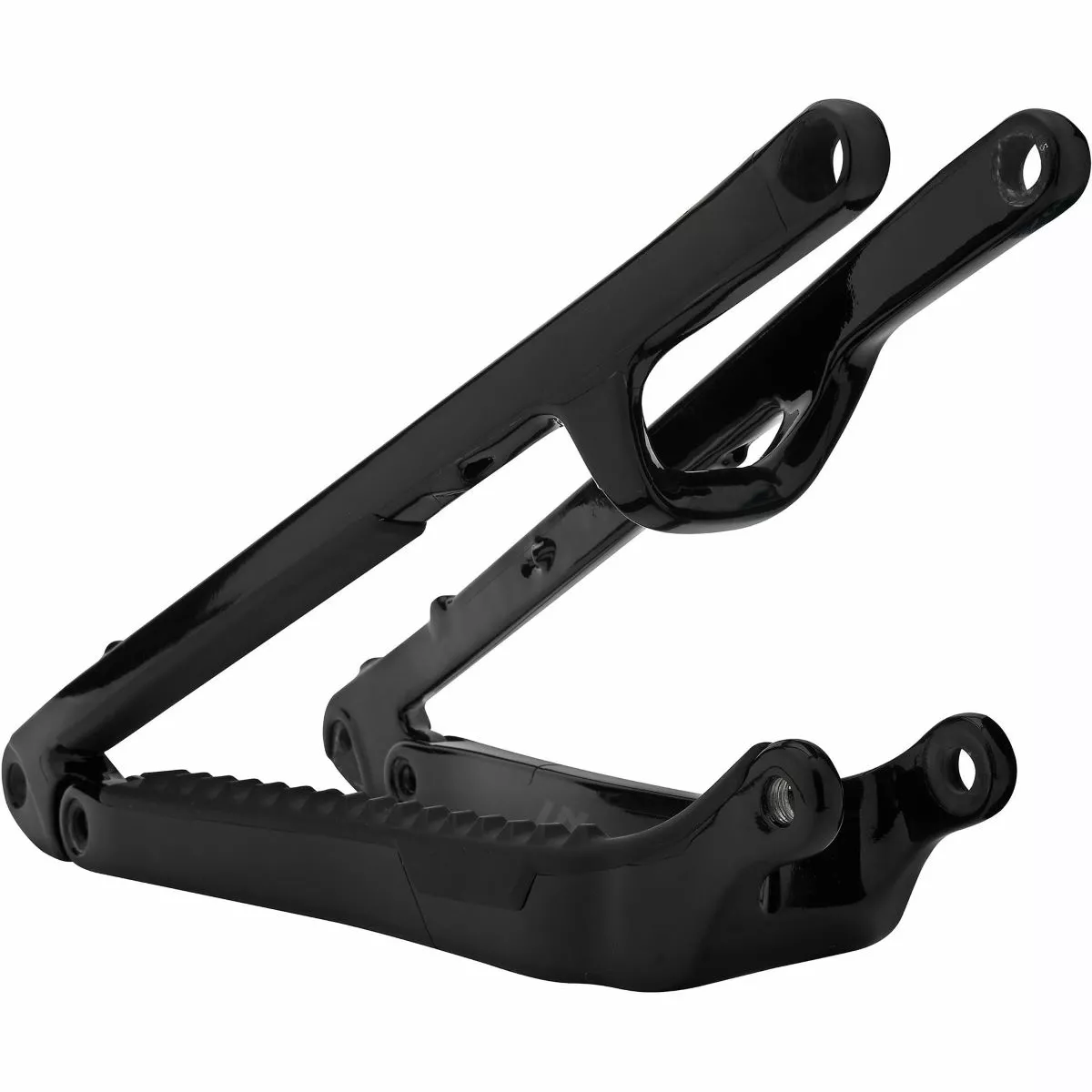

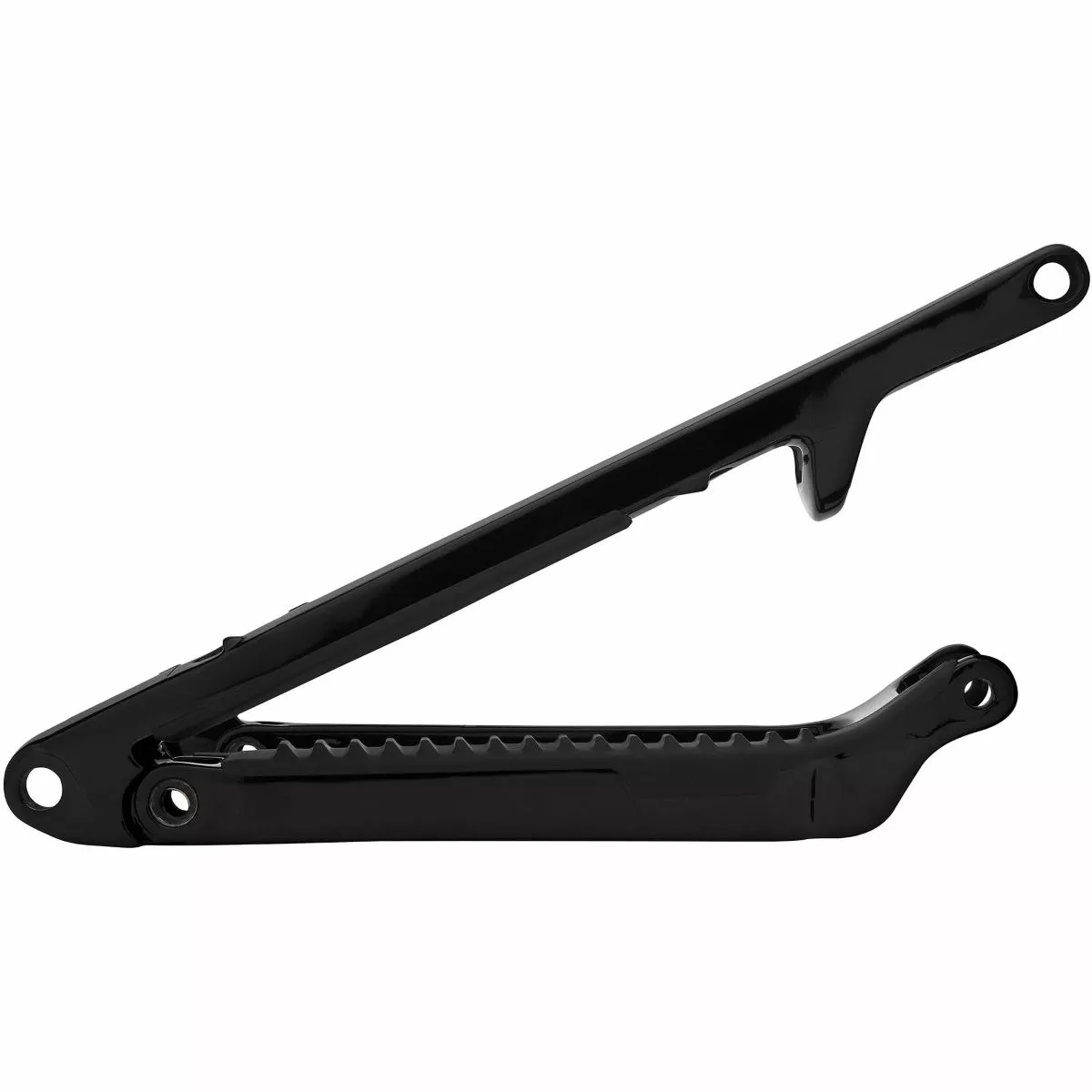

Nukeproof Mega V4 Carbon 297 Seat stays (X1) and Chainstays (X1). Made from ultra-strong monocoque UD Carbon Fibre
Internally piped cable routing
Enduro Bearings Pre-Installed
Boost 148mm rear axle spacing
3D contoured Rubber frame protection included
Factory fitted clear paint protection kit covering CS/SS
Colour: Black

FAQ:

 – Will this change the Geometry of my Mega? No. Nukeproof has designed the Mega as a series of parts that can be fitted together to make different configurations. As a result, the geometry remains the same. For exact geo’ please reference the Mega 297 geometry chart.

 – Can I fit this myself at home? Yes, referencing our install guide and you are a competent mechanic with the correct tools and the know-how for using them. Due to the complex nature of a full-suspension frame, there are a lot of moving parts that must be installed and assembled in the correct order. It is also imperative that the correct parts are greased, thread locked or torqued to specification. Failure to do so would void the warranty of the frame. If you do not have the know-how, then please contact your local Nukeproof dealer or skilled service centre.

Specifications:

Material: Ultra Strong T700/800 Monocoque Carbon Fibre
Wheels Size: Rear 27.5″
Max Tyre Size: 2.6″
Shock Size: 230×62.5mm
Bearings Included: 4x F6802 LLU MAX Pre-Installed
Rear Hub: Boost 148x12mm
Rear Axle: SRAM UDH Maxle Stealth M12x1.0 180mm (Thread Length 13mm)
Brake Mount: 180mm Direct Post
Protection: 3D Contoured Rubber Frame Protection for SS/CS
